Integrate OpenLDAP for SSO Authentication

Access the SafeSquid User Interface​

Enable Authentication​

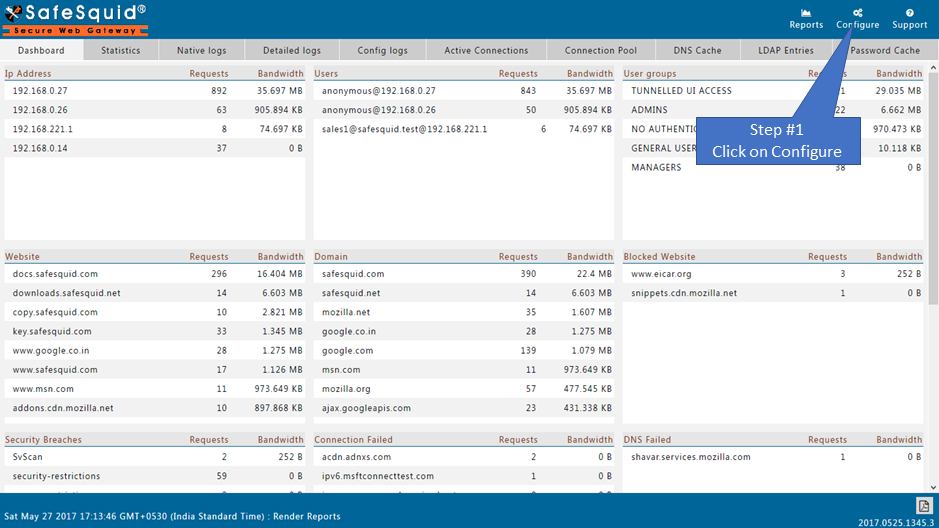

Click on configure​

Click on configure

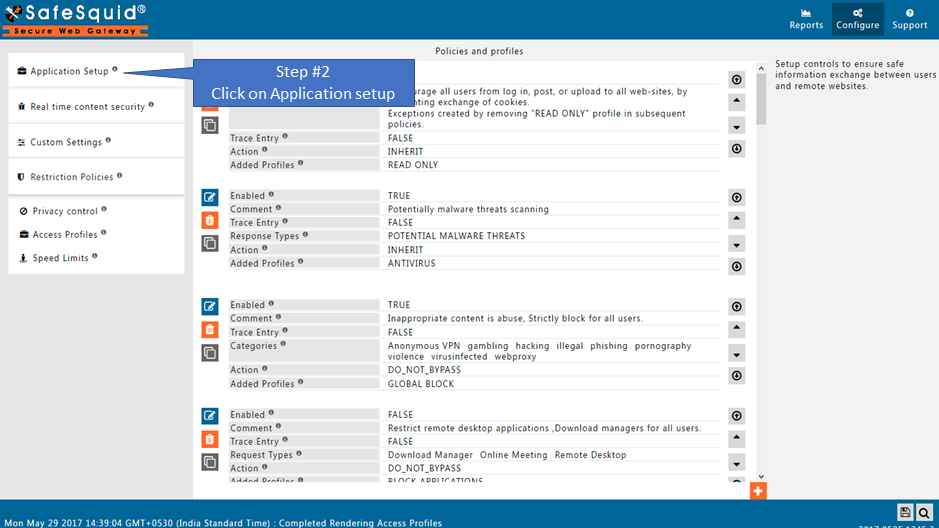

clicking on application setup

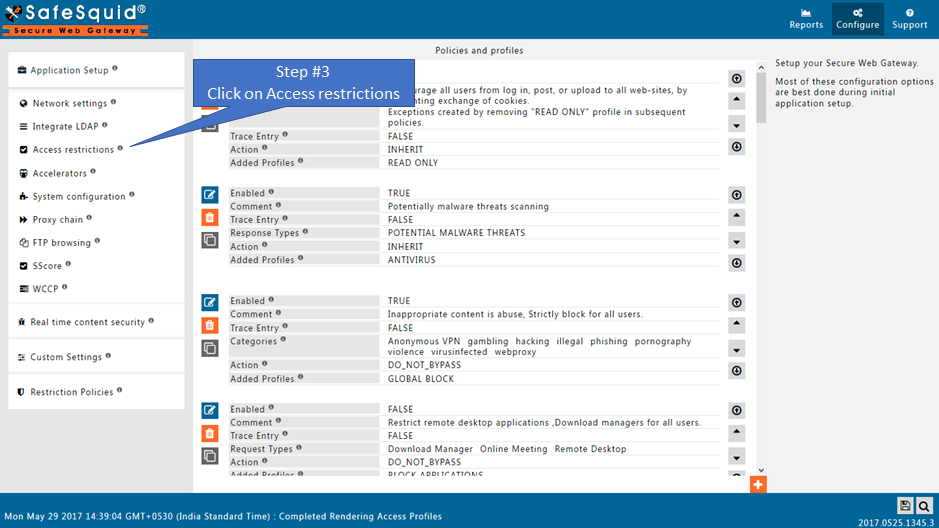

clicking on access restriction in application setup

By default, SSO is TRUE don't change anything here

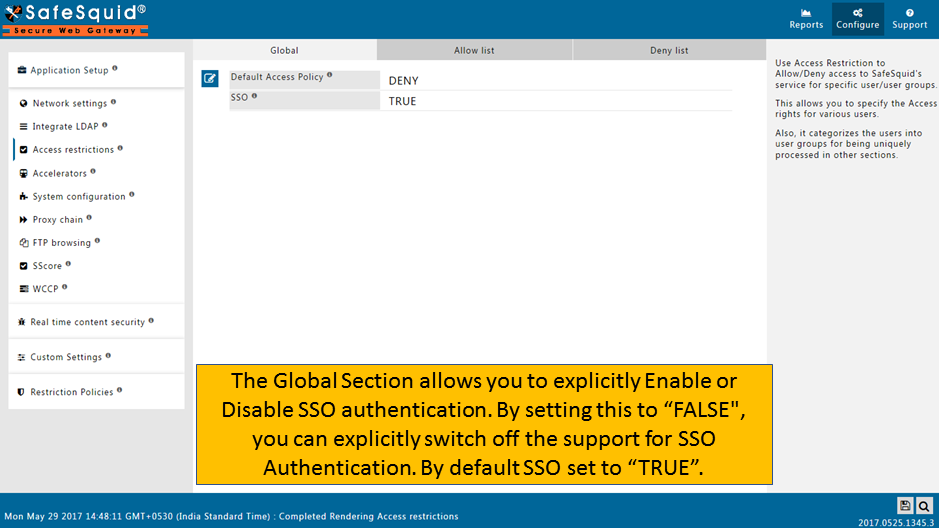

Dont change Anything in Global Section

By default SSO is TRUE don't change any thing here

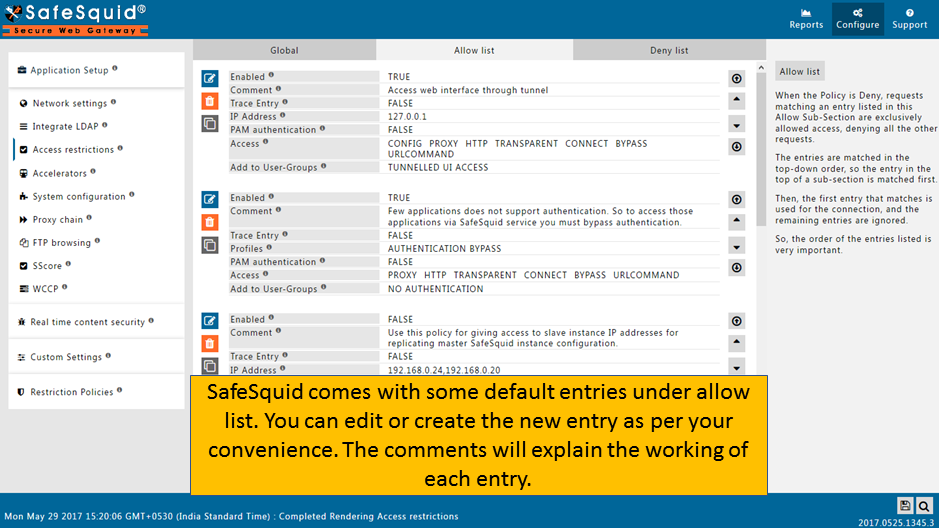

safesquid comes with some default entries under allow list. You can edit or create a new entry as per your requirement

See the working of each Entry here

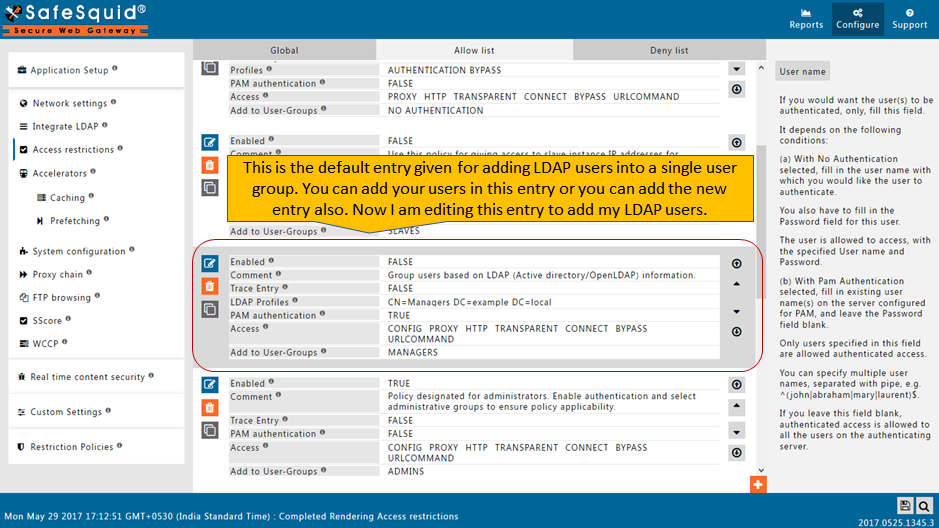

default entry given for adding LDAP users into a single user group

clicking on edit policies to edit the default policy

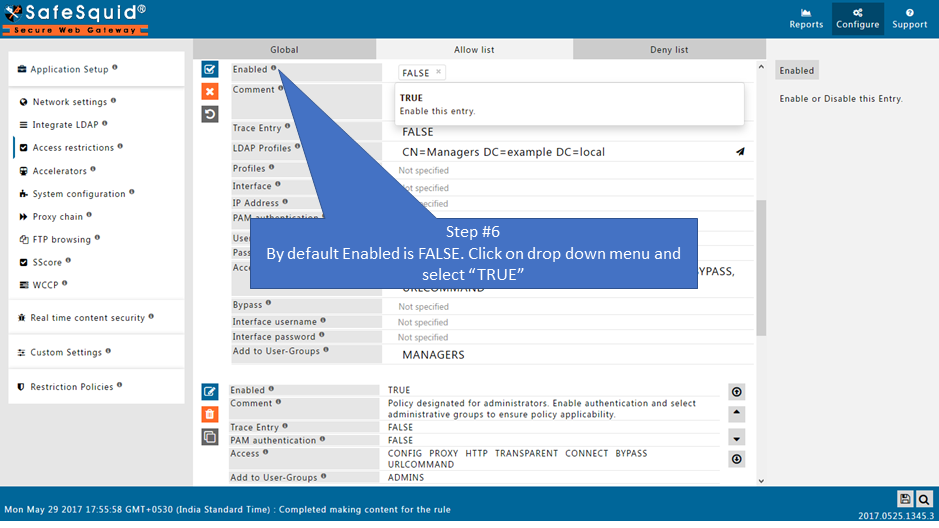

by default enabled field is false. make it true

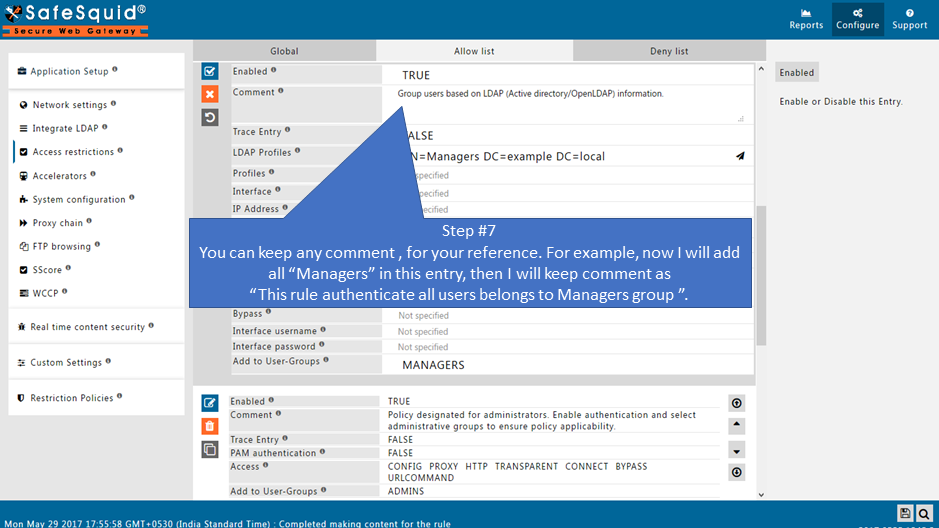

adding comment for future reference

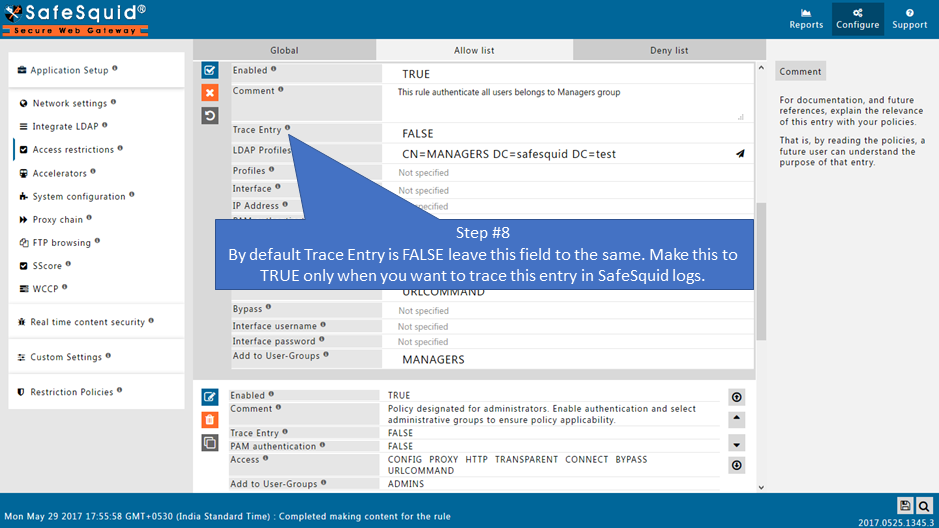

when your want to trace an entry make it true in the trace entry field otherwise leave it as false

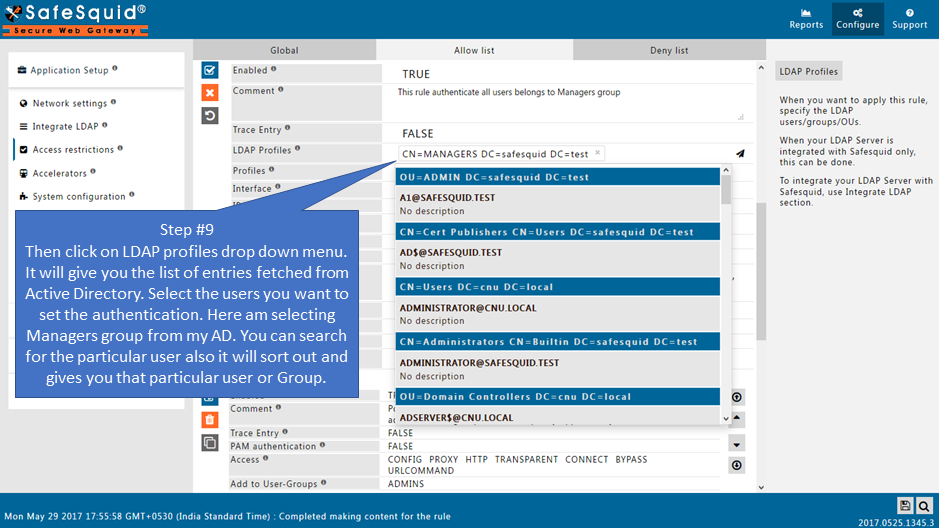

in LDAP profiles selecting the users or user groups you want to set the authentication for

If you want to Authenticate all users from Active Directory Leave this field empty.

note

If you want to leave this field blank make sure that the user or IP address from where you are accessing SafeSquid interface must be free from authentication.

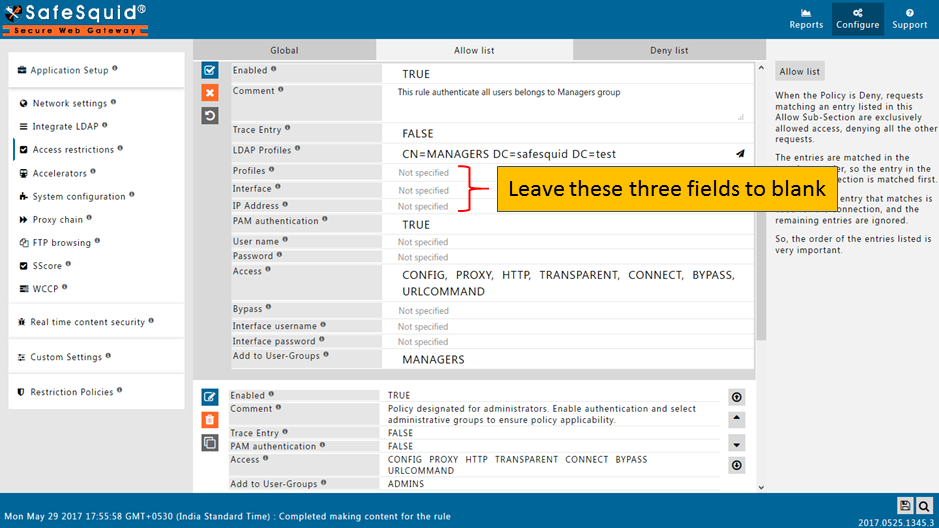

leaving the profiles,Interface and IP address fields blank

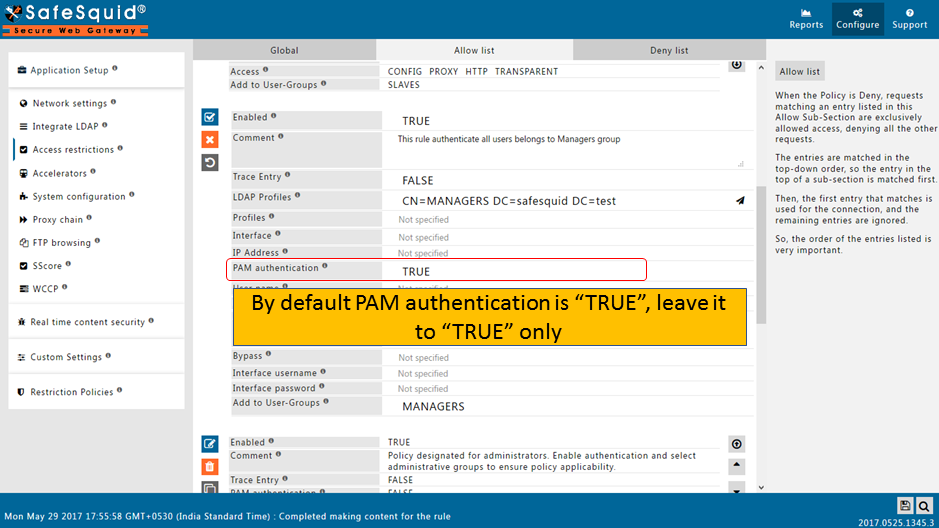

leaving PAM authentication true as it is

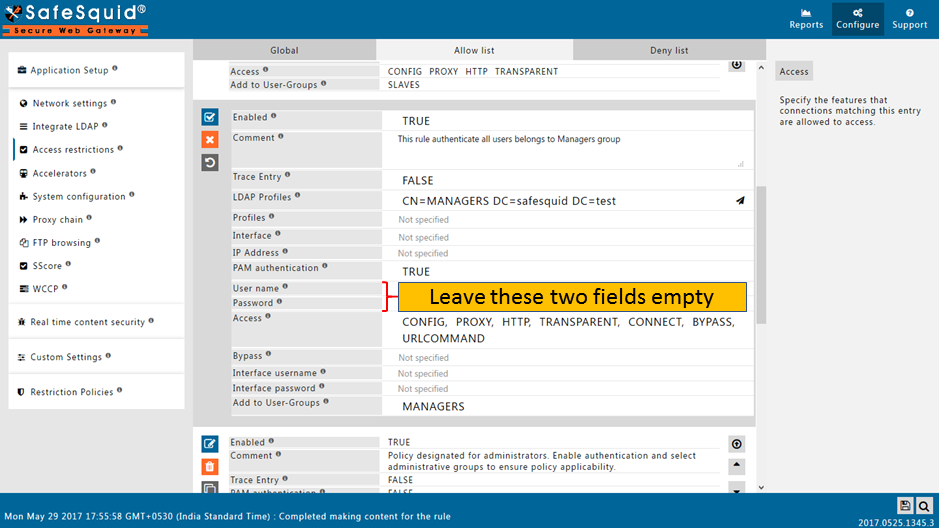

leaving the username and password field empty

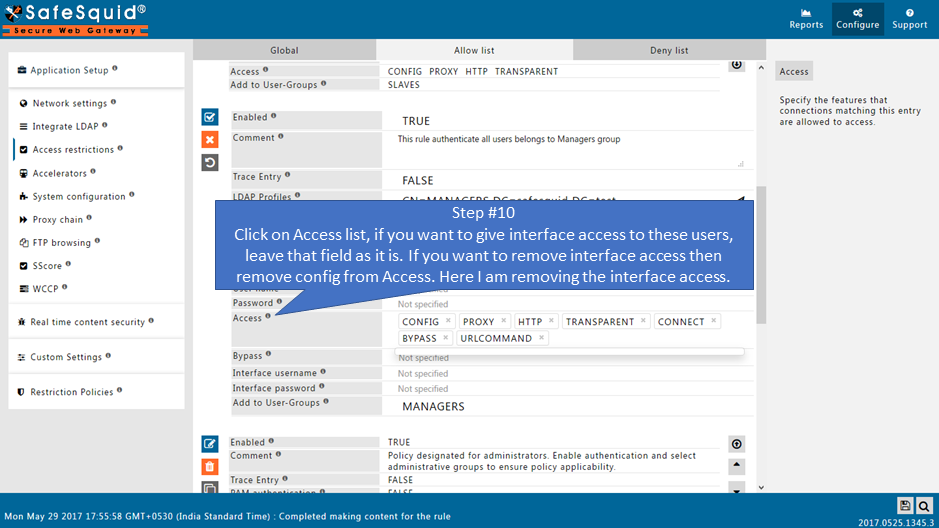

Clicking on access list, you can remove or give the interface access to the users

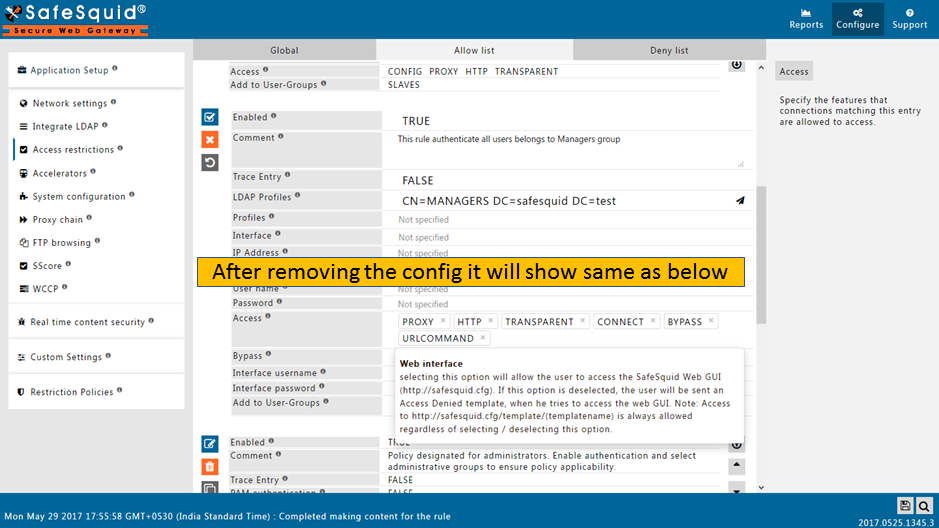

after removing the config it will show the information about web interface in the drop down

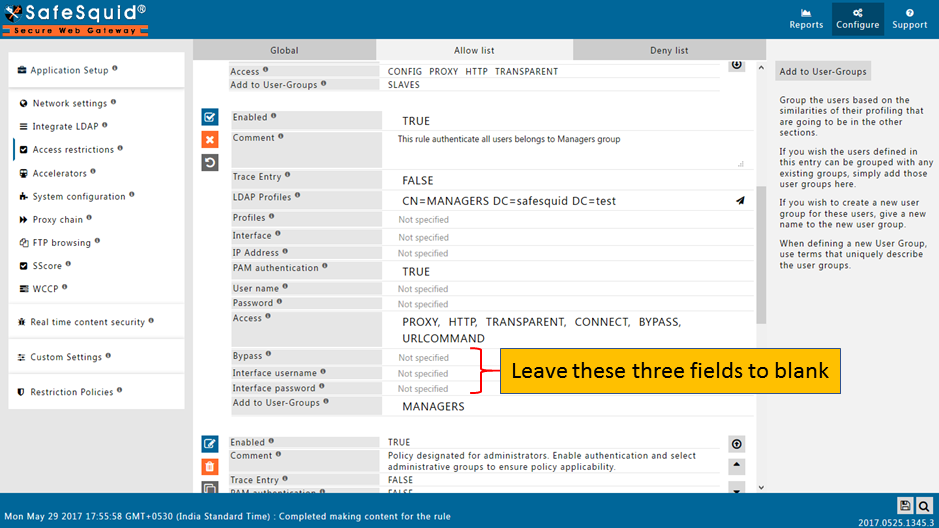

leaving Bypass, Interface username and Interface password field balnk

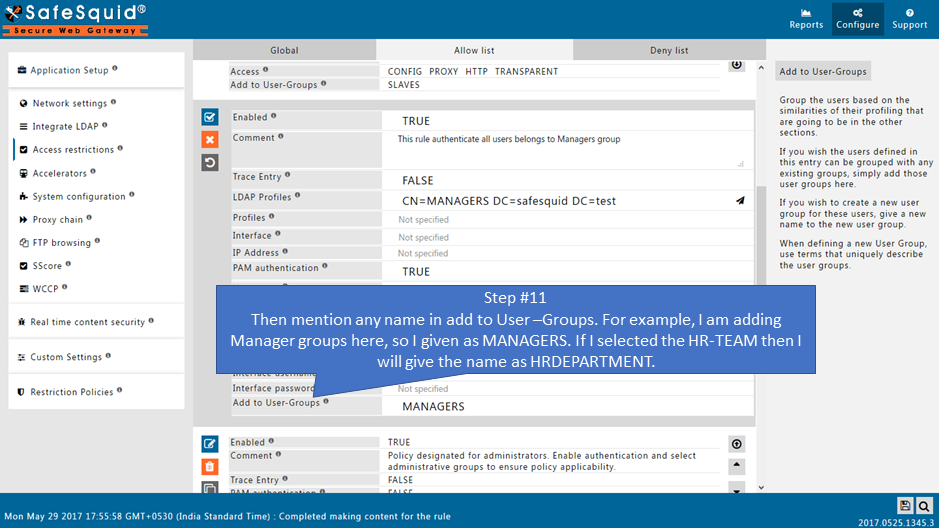

adding a name in the add to user group section

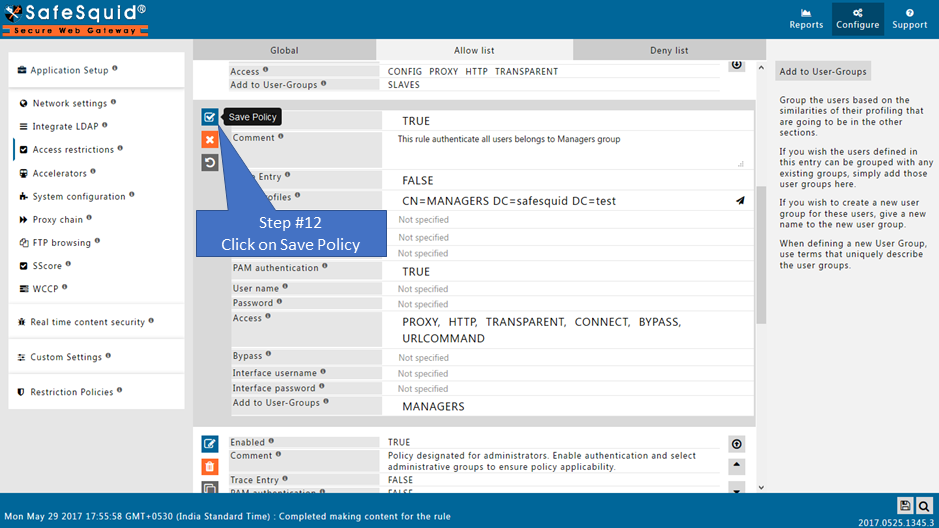

clicking on save policy

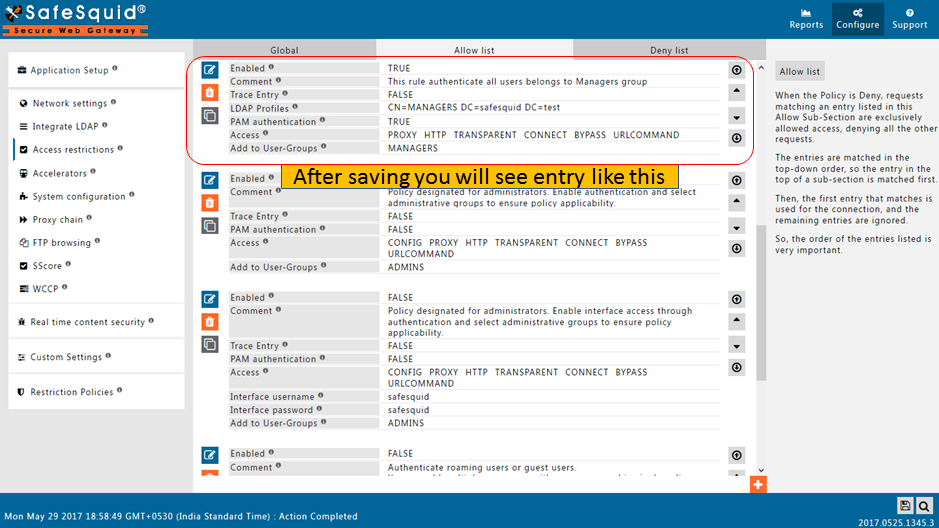

after saving the entry will look something like this

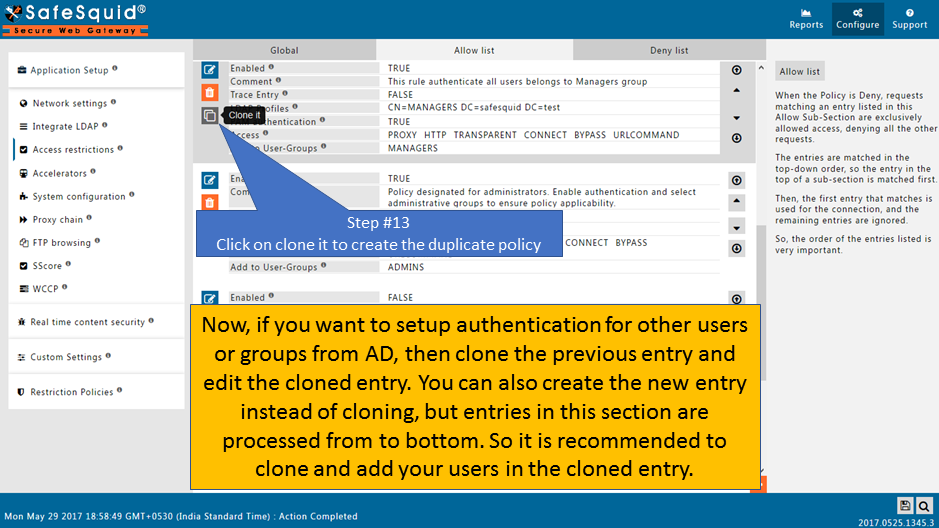

cloning the previous entry to setup authentication for other users. you can create a new entry as well

adding the new users to the clone entry created

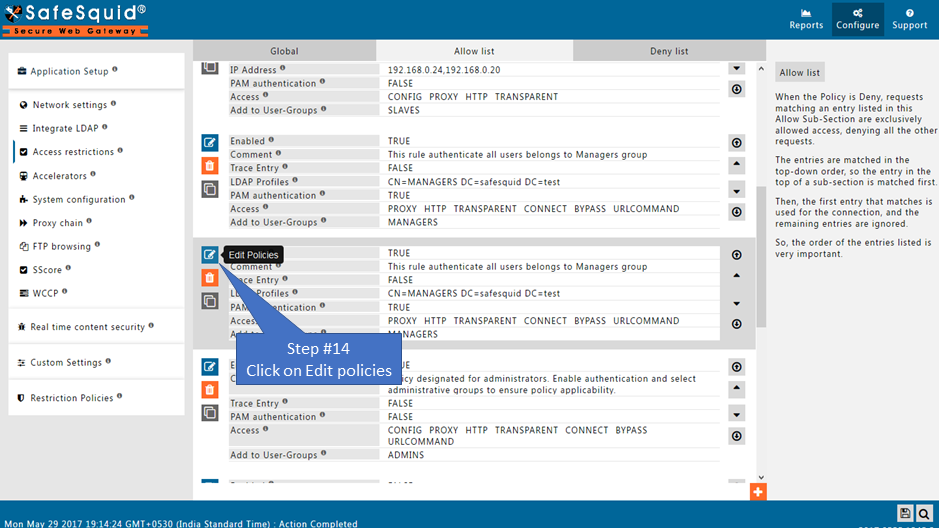

clicking on edit policies

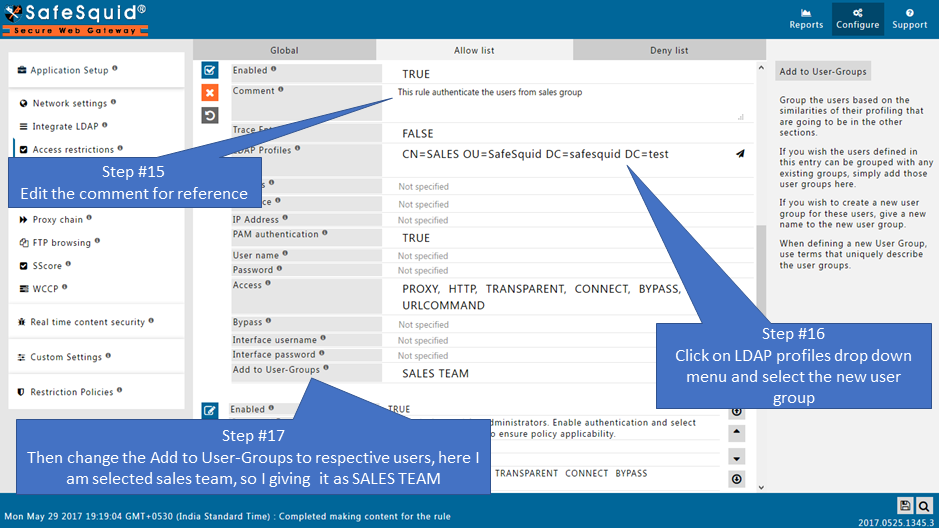

entering comment for future reference,clicking on LDAP profiles and selecting the user group from the drop down menu and adding the user group name

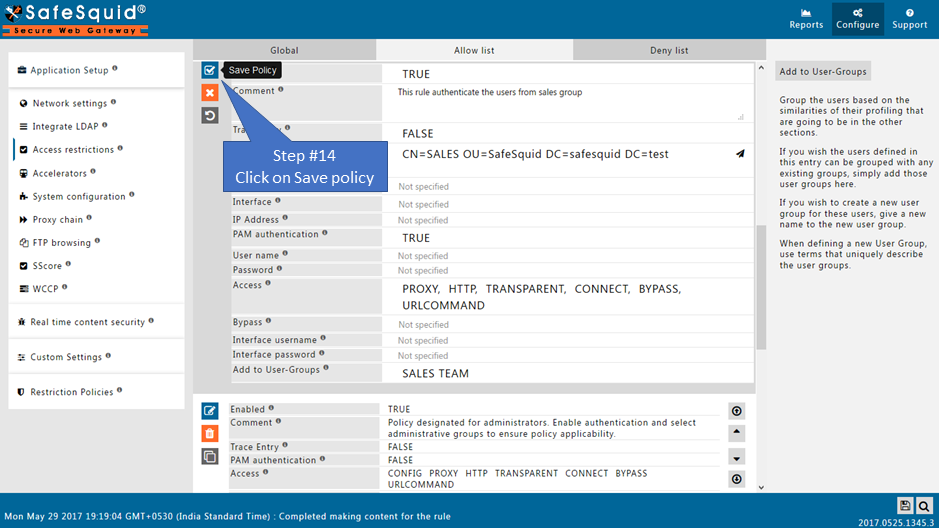

clicking on save policy

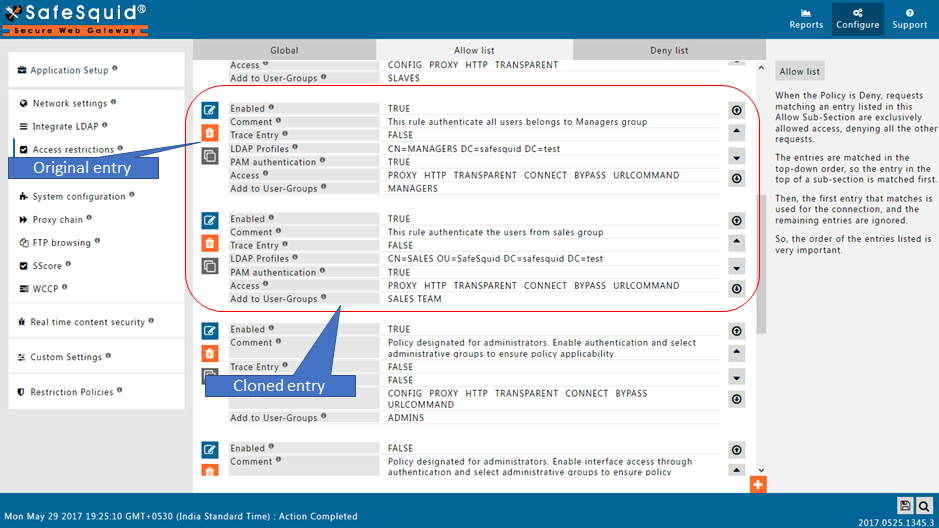

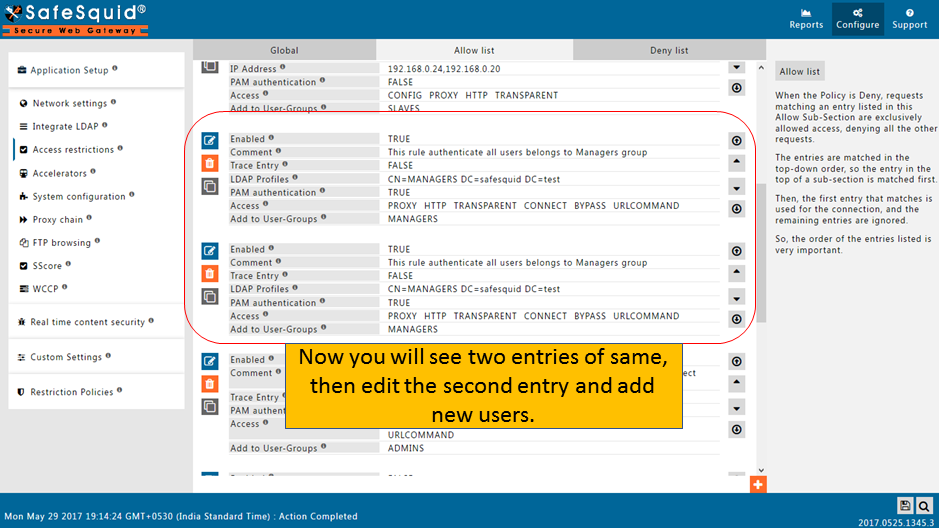

showing of original entry and cloned entry

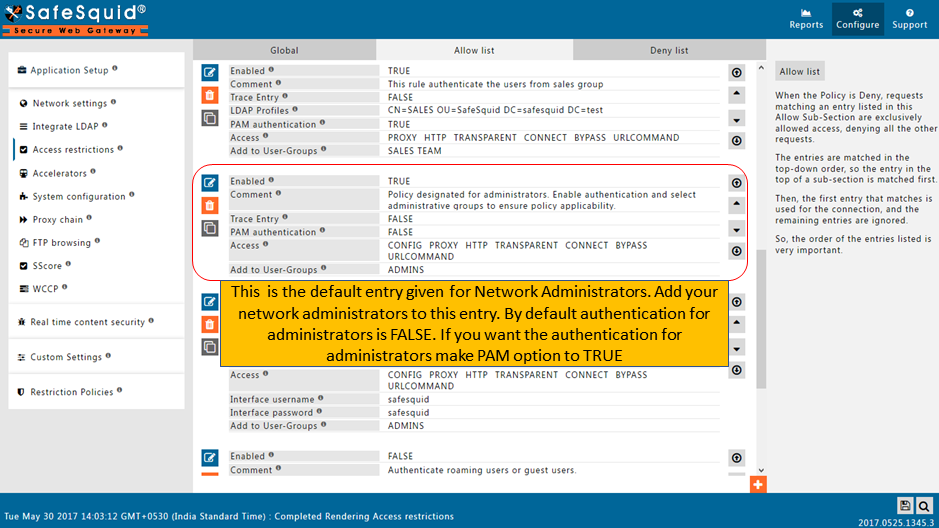

default entry for network administrators. adding your network administrators to this entry

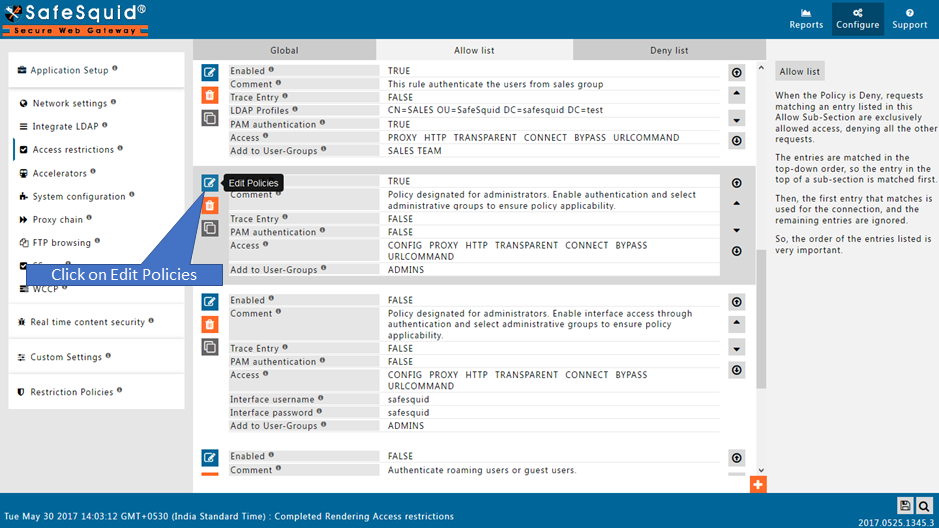

clicking on editing policy

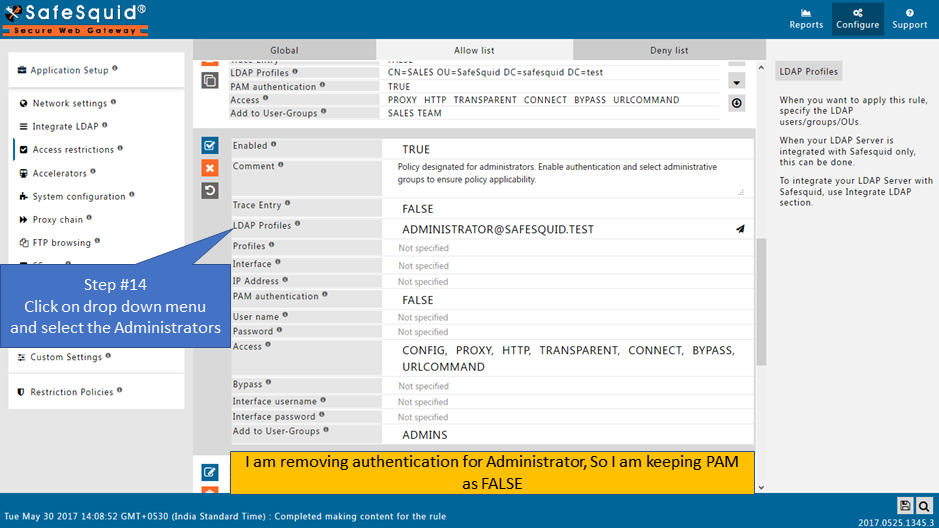

clicking on drop down menu to select the administrators

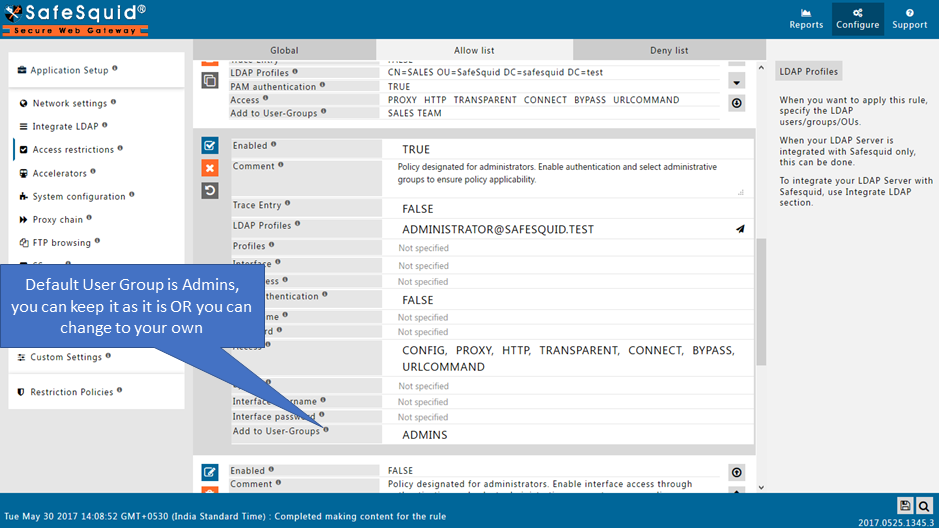

you can keep the default user group as admins or can change

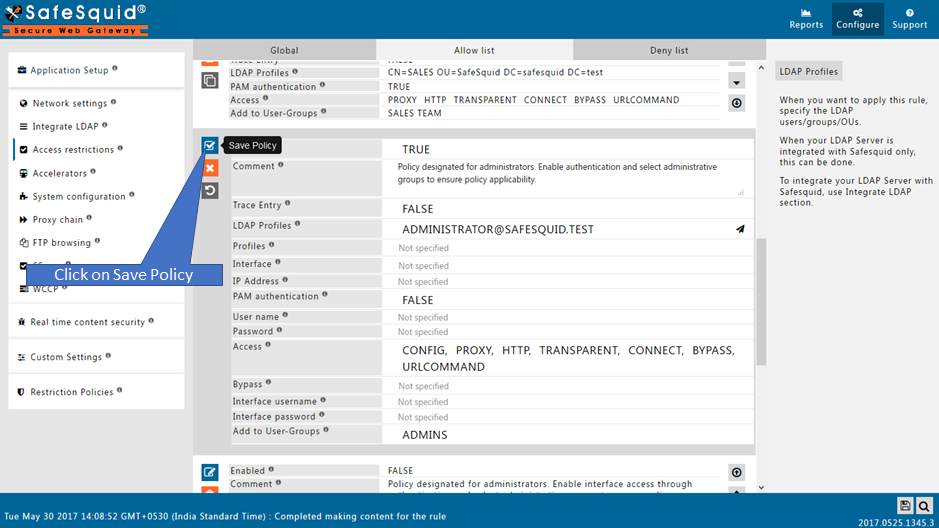

clicking on the save policy

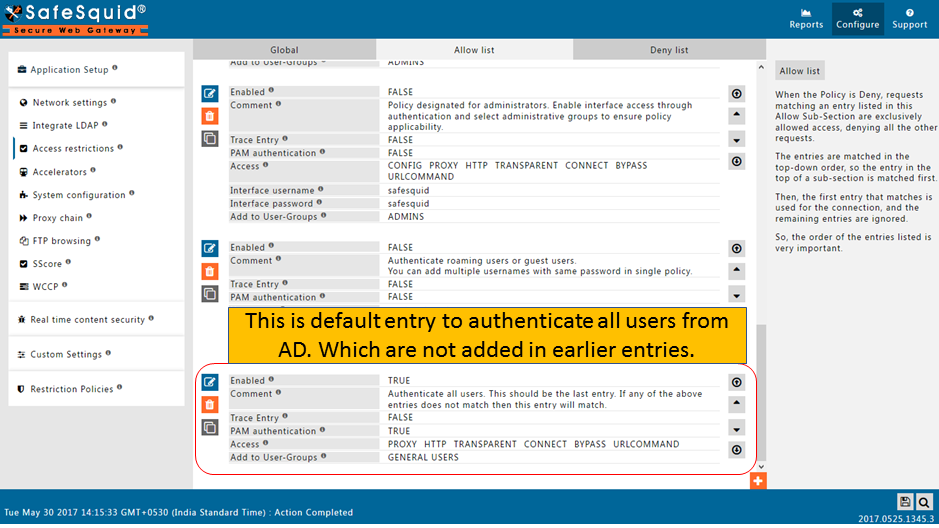

default entry to authenticate all users from AD which are not added in earlier entries

Verifying SSO Authentication​

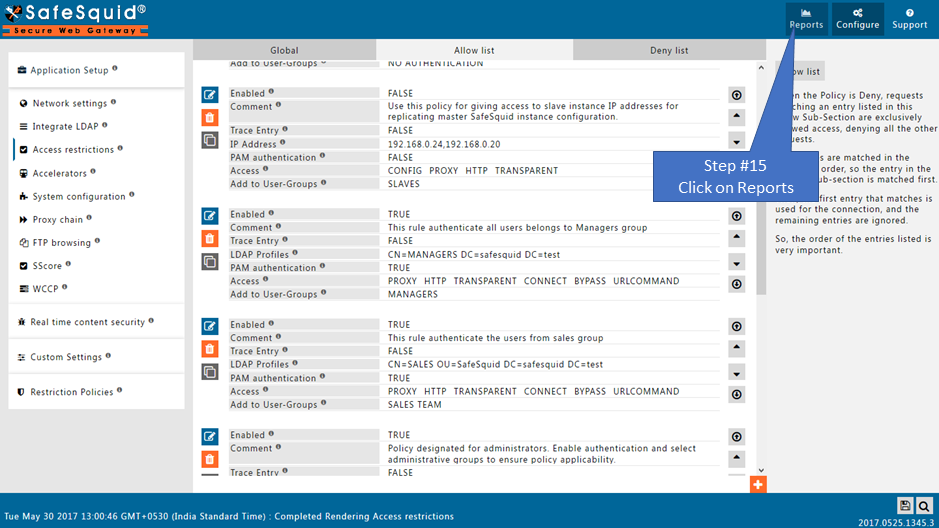

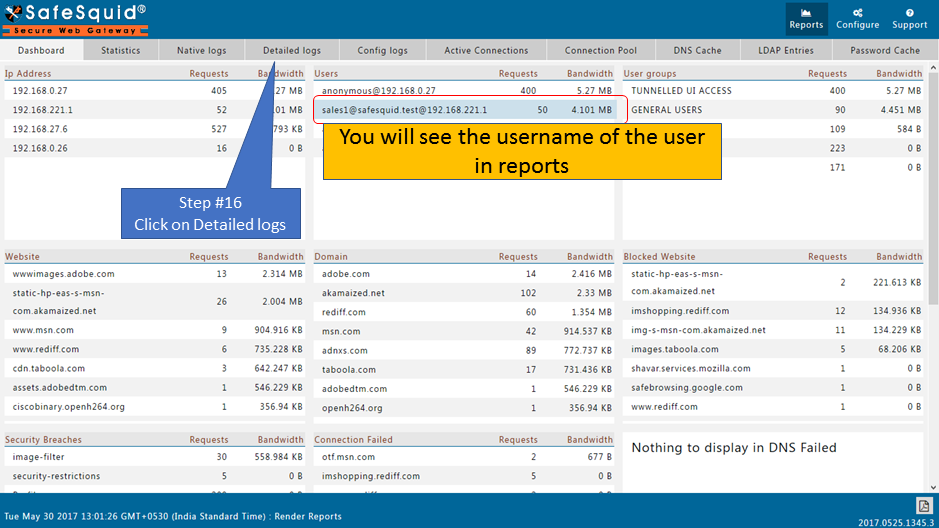

clicking on reports in the safesquid dashboard

clicking on detailed logs

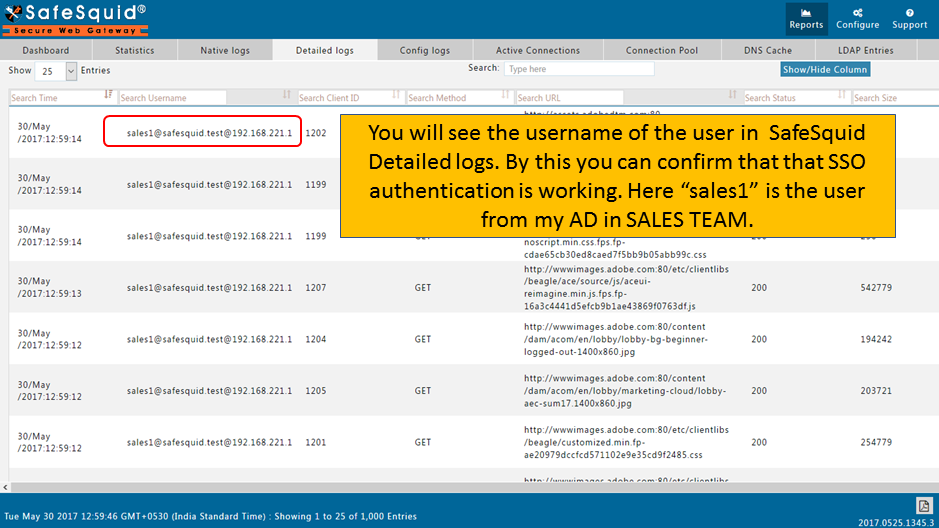

confirming that the SSO authentication is working by seeing the username of the user in safesquid detailed logs
