Redirect first-match flow

​
Overview

The Redirect section allows SafeSquid to intercept requests for specific URLs and either internally rewrite them (fetching content from a new destination on behalf of the client) or send an HTTP 302 redirect back to the client’s browser.

​
Core Mechanics (C++ Source Validation)

First-match URL/Location rewrite, send302 branching.
  • Evaluation Order: Rules are evaluated top to bottom. The first matching rule takes effect and evaluation stops for that pass.
  • PCRE Matching: The URL field accepts Perl Compatible Regular Expressions (PCRE) with capture groups (e.g., (.*)), which can be referenced in the Redirect field using $1, $2, etc.
  • Internal Rewrite vs. 302: If send302 is false, SafeSquid fetches the rewritten URL and serves the content transparently. If true, it returns an HTTP 302 Location redirect to the client.

​
Schema Fields

​
Global Fields

  • Enabled (enabled): Toggles URL redirection globally.

​
Rule-Based Fields (Per Connection Tuning)

  • Enabled (enabled): Toggles the rule.
  • Comment (comment): User description. Logged on match when non-empty.
  • Profiles (profiles): The trigger condition. Limit this entry to connections that already carry these Access Profile tags.
  • URL (url): PCRE matched against the request URL or Location header.
  • Redirect (redirect): The replacement template after the PCRE match.
  • Port (port): When > 0, forces this destination port on internal rewrite. 0 keeps the port from the rewritten URL.
  • 302 redirect (send302): Set to Yes for HTTP 302, or No for internal transparent fetch.
  • Options (options): Bitmask/list of options: Decode URL before match (DECODEBEFORE), encode URL path (ENCODE), or decode URL path after substitution (DECODEAFTER).
  • Applies to (which): Match client request URL (URL), response Location header (LOCATION), or both (BOTH).

​
How SafeSquid processes the list

  1. On the client request, SafeSquid builds proto://host/file and tests rows whose Applies to includes URL (or BOTH).
  2. On redirect responses, SafeSquid tests the response Location value for rows that include LOCATION (or BOTH).
  3. First enabled row that matches profiles, URL regex, and direction wins; processing stops.
  4. 302 redirect = No (default): rewrite proto, host, file, and optional port on the request and fetch internally; request type may become HTTP proxy.
  5. 302 redirect = Yes: send HTTP 302 to the client with the rewritten URL as Location; no origin fetch for that request.
  6. Options: percent-decode before PCRE match; URL-encode or decode the path portion after substitution.
Order matters. Put specific URL patterns above broad catch-alls — first match wins.

​
Important entry fields

  • Profiles — Apply only when the connection has one of these profiles. Blank = all connections. Prefix ! to skip connections that have a profile.
  • URL — PCRE with capture groups matched against the request URL or Location header. Required; blank URL skips the row.
  • Redirect — Replacement template after PCRE match (supports $1 captures and connection variables).
  • Port — When > 0, force this destination port on internal rewrite. 0 keeps the port from the rewritten URL.
  • 302 redirect — Yes — HTTP 302 to client. No — internal rewrite and fetch.
  • Applies to — URL (request only), LOCATION HEADER (response redirects only), or BOTH (separate processing passes).

​
Examples

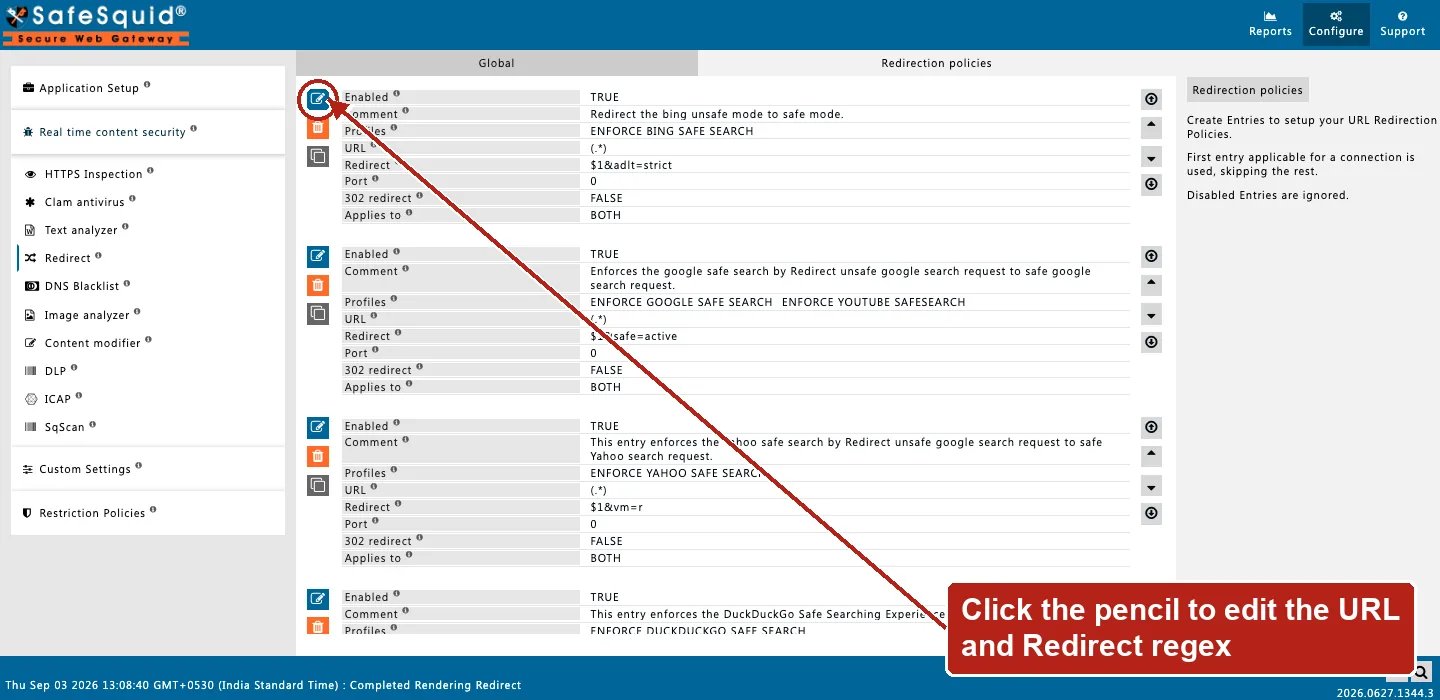

Open Configure → Real time content security → Redirect → Redirection policies. Row fields are Enabled, Comment, Profiles, URL, Redirect, Port, 302 redirect, and Applies to — the shipped default rows enforce safe search on Bing, Google, Yahoo, and DuckDuckGo.

Redirect — Redirection policies rows

​
1 — Force Google safe search (internal rewrite)

  • URL: ^https://(www\.)?google\.com/search\?(.*)
  • Redirect: https://www.google.com/search?safe=active&$2
  • 302 redirect: No, Applies to: URL
Result: matching Google search requests are rewritten and fetched by SafeSquid with safe=active; the browser address bar stays on the original URL pattern.

​
2 — Send users to a block info page (302)

  • URL: ^https://old-portal\.example\.com/
  • Redirect: https://intranet.example.com/moved.html
  • 302 redirect: Yes
Result: client receives HTTP 302 with Location set to the new URL; SafeSquid does not fetch the old portal for that request.

​
3 — Rewrite outbound redirect Location

  • Applies to: LOCATION HEADER
  • URL: ^http://cdn\.example\.com/(.*)
  • Redirect: https://cdn.example.com/$1
Result: when the origin returns a redirect whose Location matches, SafeSquid replaces Location with the HTTPS form before the response reaches the browser.

​
4 — Profile-gated redirect only for guests

  • Profiles: Guest
  • URL: ^https://mail\.example\.com/
  • Redirect: https://webmail-lite.example.com/, 302 redirect: Yes
Result: Guest users get 302 to webmail-lite; staff without the Guest profile skip the row and reach mail.example.com normally.

​
How to verify

  1. Reproduce the URL from a client and watch whether the browser receives 302 or content from the rewritten host.
  2. Enable REDIRECT in LOG_LEVEL for native lines showing match, internal rewrite, or an HTTP 302.
  3. Open Reports → Detailed logs for the requested URL and response code.
  4. Pair Redirect profile tags with rows in Access Profiles (tags are not hard-coded — both sections must reference the same tag string).
