Speed Limits

​

Overview

The Limits section allows administrators to constrain bandwidth, connection counts, and data transfer sizes on a per-profile basis.

​

Core Mechanics (C++ Source Validation)

Token-bucket rate, quota counters, request cap enforcement.

• Bandwidth Shaping: SafeSquid utilizes a token-bucket mechanism. Connections are assigned to a specific LimitGroup. The traffic shaper enforces the downloadrate throttle globally across all connections in that group.
• Quota Tracking: Global and per-user transfer quotas (maxdbytes, maxubytes, maxrequests) are updated incrementally as payloads are flushed. Cached payloads (CONNECTION_CACHING) can be configured to bypass quota deductions (LIMIT_CACHE).
• Enforcement: If a connection violates maxrequests, the connection action is instantly set to block, serving the block template with a LMS_TOO_MANY_REQUESTS status and generating a TCP_DENIED log entry.

​

Schema Fields

​

Global Fields

• Enabled (enabled): Toggles the entire Limits subsystem on or off.

​

Rule-Based Fields (Per Connection Tuning)

• Enabled (enabled): Toggles the specific rule.
• Comment (comment): User description of the rule.
• Profiles (profiles): The trigger condition. The rule applies if the connection has this tag.
• Action (action): Determines whether the limit applies (Apply) or skips/bypasses (Bypass).
• Template (templ): Key template to track quotas against (e.g., grouping by client IP or username).
• Download transfer limit (maxdownloadbytes): Maximum bytes a client can download before being blocked.
• Upload transfer limit (maxuploadbytes): Maximum bytes a client can upload before being blocked.
• Request limit (maxrequests): Maximum number of HTTP requests allowed within the tracking window.
• Download rate (downloadrate): Bandwidth throttle (e.g., bytes per second) applied to downloads.
• Adjust Transfer Limits (flags): Modifier flags for how limits are enforced or tracked.

​

Troubleshooting

Check /var/log/safesquid/native/safesquid.log for limit enforcement messages. A client hitting a quota will typically receive a 403 Forbidden with a specific limit-exceeded template.

​

How SafeSquid processes the list

1. On each relevant request, every enabled row matching profiles is evaluated.
2. Request limit exceeded → HTTP 429 and the row Template block page (Action field is stored but not read by limits code).
3. Download / upload transfer limits — remaining bytes are the tightest cap among matching rows; when remaining reaches 0, further transfer on matching connections is blocked.
4. Download rate — lowest non-zero rate among matching rows wins for throttling.
5. Adjust Transfer Limits flags: Limit cache transfers (count cached responses), Per-request limit (do not accumulate row counters at connection end — each request gets full quota), Group limit (share download rate bucket across matching connections).
6. After connections complete, byte and request counters increment for matching rows (unless Per-request limit or cache exclusion applies); counters clear on the periodic reset.

​

Important entry fields

• Profiles — Limit to connections with these Access Profile tags. rules). Typical tags: RESTRICTED DOWNLOAD TRANSFER RATES, RESTRICTED UPLOAD TRANSFER RATES.
• Action — Stored in config but not read in limits code — does not change allow/deny behaviour.
• Template — Block page when Request limit is exceeded. Blank uses blocked. Download/upload overruns use the default blocked path without this field.
• Download / Upload transfer limit — Maximum bytes counted against this row since last counter reset (~10 s). 0 = no cap from this row for that direction.
• Request limit — Maximum requests counted since last reset. 0 = unlimited. Exceeded → HTTP 429.
• Download rate — Throttle in bytes/sec. 0 = no rate from this row. Lowest non-zero matching rate wins.
• Adjust Transfer Limits — Limit cache transfers, Per-request limit, Group limit — see processing order above.

​

Examples

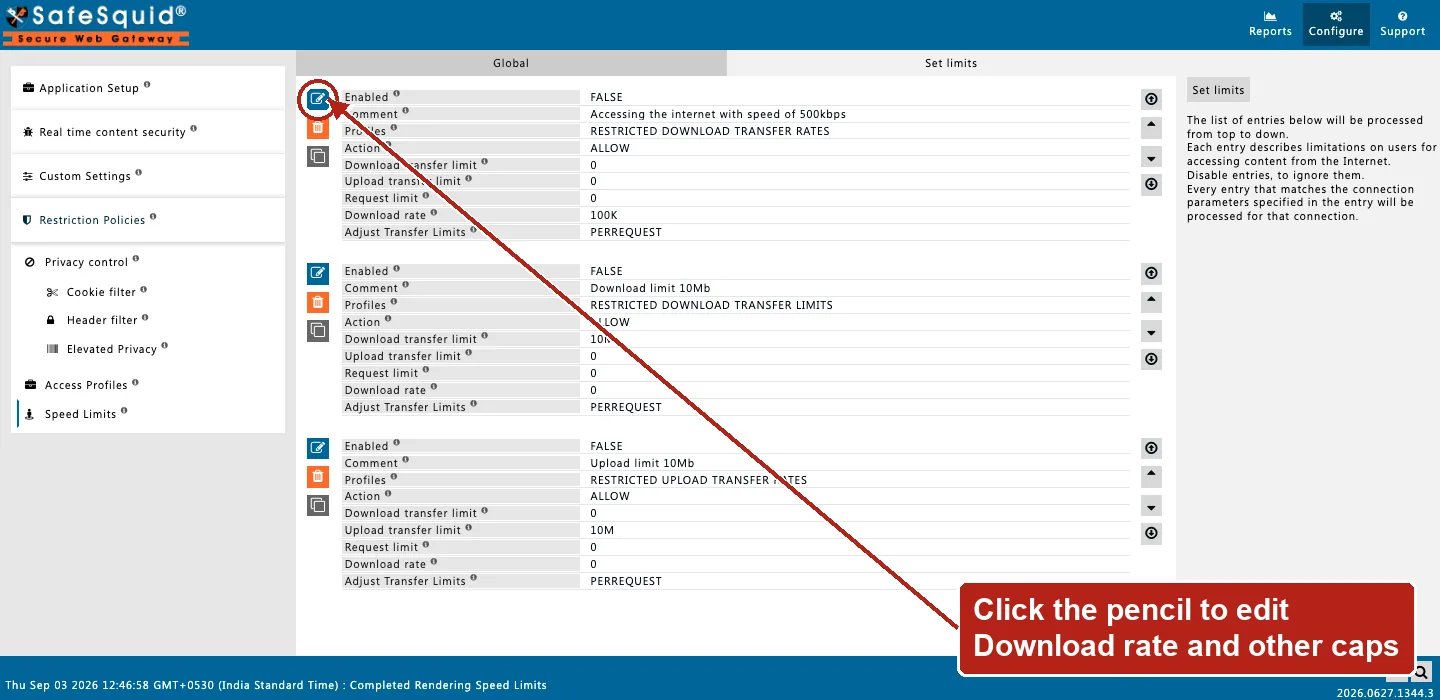

Open Configure → Restriction Policies → Speed Limits → Set limits. Each row shows Enabled, Comment, Profiles, Action, Download/Upload transfer limit, Request limit, Download rate, and Adjust Transfer Limits.

​

How to verify

1. Assign a test profile and reproduce large download or many parallel requests.
2. Enable LIMITS in LOG_LEVEL for native limits: download/upload limit and rate lines.
3. Open Reports → Detailed logs; blocked transfers show filter_name for limits and reason such as Max Requests or upload limit text.
4. Confirm counter reset behaviour by waiting ~10 seconds and retrying after hitting a window cap.
