Overview

The Keywords-filtering section (safesquid-keywords-filtering(5)) scans the textual content of HTTP payloads for specific patterns and assigns scores to determine if the content should be blocked. Cumulative scoring suits content that no single keyword proves is a problem, but that is clearly objectionable once several related terms appear on the same page — acceptable-use enforcement against gambling, adult, or extremist material.

​
Core Mechanics (C++ Source Validation)

Cumulative scoring, early exit at threshold.
  • Cumulative Scoring Engine: Unlike standard first-match modules, the keyword filter evaluates all enabled rules matching the connection profile. When a Regex keyword is matched, its defined Score is added to a cumulative tally for that connection.
  • Early Exit: If the cumulative score breaches the Global Threshold (if (x >= threshold)), scanning immediately stops to save CPU.
  • MIME Filtering: SafeSquid will only scan payloads whose Content-Type matches the specified Mime type regular expression.
  • Enforcement: Once the threshold is breached, the connection action becomes DO NOT BYPASS, serving the specified block template and populating the _SCORE_ and _REASON_ template variables.
A Text analyzer block is not click-through-able. Even when the matching Access restrictions entry grants Allow bypassing, a Text analyzer block offers the user no continue-anyway link — that override applies to some other block reasons, not this one.

​
Schema Fields

​
Global Fields

  • Enabled (enabled): Turn Text analyzer on or off for all connections, unless the matching Access restrictions entry’s Bypass grants Text analyzer.
  • Threshold (threshold): Minimum total score from matching rows to block. Block when total ≥ this value (strictly below = allow).
  • Template (templ): Block page template when score ≥ Threshold. Blank uses blocked . Template receives SCORE and THRESHOLD variables.

​
Rule-Based Fields (Per Connection Tuning)

  • Enabled (enabled): Skip this row when disabled. Rows with Score 0 or blank Keyword are never applied.
  • Comment (comment): Notes for operators. Logged on match when non-empty.
  • Profiles (profiles): Apply only when the connection has one of these profiles. Blank = all connections. Prefix ! to skip connections that have a profile.
  • Mime type (mime): Regex on response Content-Type . Blank defaults to matching text (same as built-in text/css/javascript/xml/json family).
  • Keyword(s) (keyword) — Regex searched in the response body. Required; blank Keyword skips the row. Example: \b(gambling|casino)\b. One match adds Score once per scan pass for this row.
  • Score (score): Points added when this row’s keyword regex matches the body. Use 0 to disable the row. Negative values reduce the running total — useful for a keyword that should offset an otherwise-alarming score in a legitimate context, for example a news article that discusses a sensitive topic responsibly.

​
How SafeSquid processes the list

  1. During response processing, if any enabled row matches the response Content-Type, SafeSquid buffers the body.
  2. After the body is available, rows are walked top to bottom.
  3. Mime type regex must match Content-Type. Blank mime defaults to matching text (same family as text/css/javascript/xml/json).
  4. Keyword regex is searched in the buffered body; each match adds that row’s Score (negative scores reduce the total).
  5. Rows with Score 0 or blank Keyword are never applied.
  6. At or above Threshold: HTTP 451 block page, bypass disallowed, cache code TCP_DENIED — the connection’s cache entry is marked so the blocked response is never served from cache.

​
Important entry fields

  • Profiles — Apply only when the connection has one of these profiles. Blank = all connections. Prefix ! to skip connections that have a profile.
  • Mime type — Regex on response Content-Type. Blank defaults to matching text.
  • Keyword(s) — Regex searched in the response body. Required; blank Keyword skips the row.
  • Score — Points added when the keyword regex matches. Use 0 to disable the row. Negative values reduce the running total.

​
Examples

Open Configure → Real time content security → Text analyzer → Global for Enabled, Threshold, and Template. The Filtering policies row list is not screenshotted here — its shipped default keyword rows contain explicit search terms, unsuitable to publish verbatim.

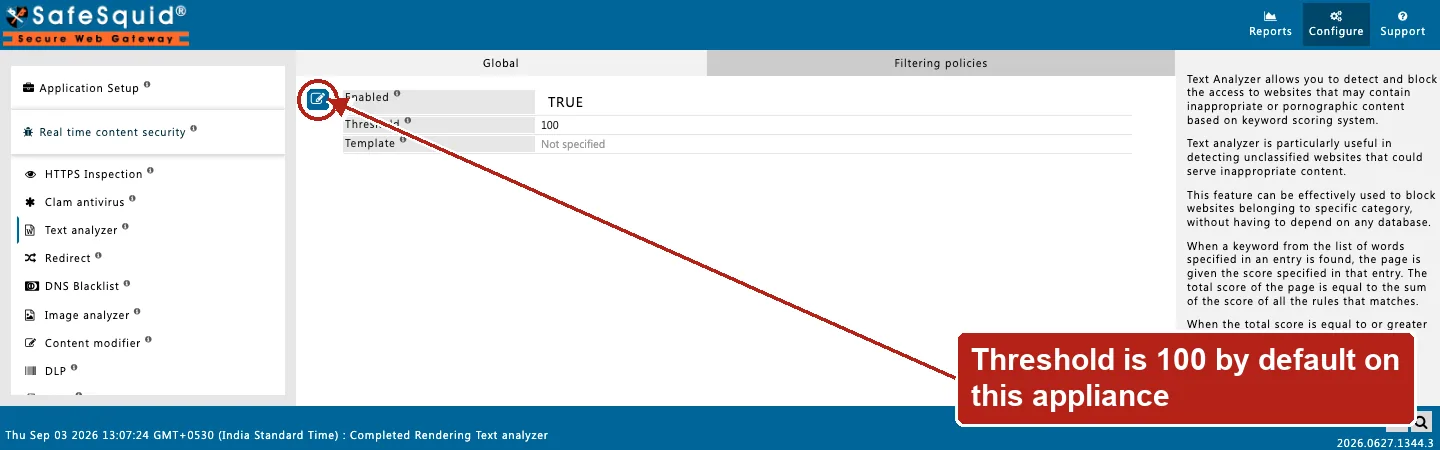

SafeSquid console showing Text analyzer Global fields with Threshold set to 100, the Edit Policy icon circled

Text analyzer — Global fields

​
1 — Block pages with multiple mild terms

  • Threshold: 100
  • Row A: Keyword gambling, Score 40
  • Row B: Keyword casino, Score 70
Result: a page containing both terms scores 110, meets Threshold, and is blocked with HTTP 451 and the configured template. A page with only gambling scores 40 and is allowed.

​
2 — Single high-weight term

  • Threshold: 50
  • Row: Keyword \bweapon\b, Score 100, Mime blank (text family)
Result: any text/html body matching the regex is blocked on first row match; scan stops once total ≥ Threshold.

​
3 — Limit to students profile

  • Row: Profiles Students, Keyword weapon, Score 80
  • Threshold: 50
Result: staff without the Students profile skip the row entirely; student connections with weapon in the body are blocked.

​
4 — Non-text response skipped

  • Row: Mime text, Keyword badword, Score 100
Result: an image/png response does not match the mime regex, is not buffered for keyword scan, and passes through even if binary data accidentally contained the string.

​
How to verify

  1. Fetch a test page through the proxy and confirm block vs allow against known body content.
  2. Check debug response header X-Text-Analyzer (shows score vs threshold, Buffering Requested when mime matched, or Disabled when the section is off for that connection).
  3. Enable TEXT_ANALYZER in LOG_LEVEL for native match: and blocked / allowed lines.
  4. Open Reports → Detailed logs; blocked responses show filter_name for text analyzer and the score reason.
  5. If a page you expect to be blocked passes through, check its actual Content-Type first — a Mime type mismatch is the most common reason a response is never scanned.
