Turn performance data into operating evidence

​

Problem statement

When a team reports slowness, instability, or unexplained capacity pressure, screenshots of the dashboard are not enough. Operators need a time-bounded view of performance behavior so they can correlate complaints with actual load and investigate the correct incident window.

​

Client scenario

Use Performance Plot when you need to:

• inspect SafeSquid load during a specific incident window
• compare current behavior with expected performance trends
• gather evidence for capacity review or escalation
• preserve a visual record of performance before and after a change

​

Key benefits

Performance plots help operations teams move from vague complaints to measurable time-based evidence. They are especially useful during incident review, change validation, and capacity planning discussions.

​

Prerequisites

​

Client-side preparations

• Know the approximate time window of the event you are investigating.
• Confirm the issue really occurred through the SafeSquid path you want to analyze.

​

SafeSquid-side setup

• Ensure the Support interface is accessible.
• Confirm the underlying performance logging path is active.

​

Setup instructions

​

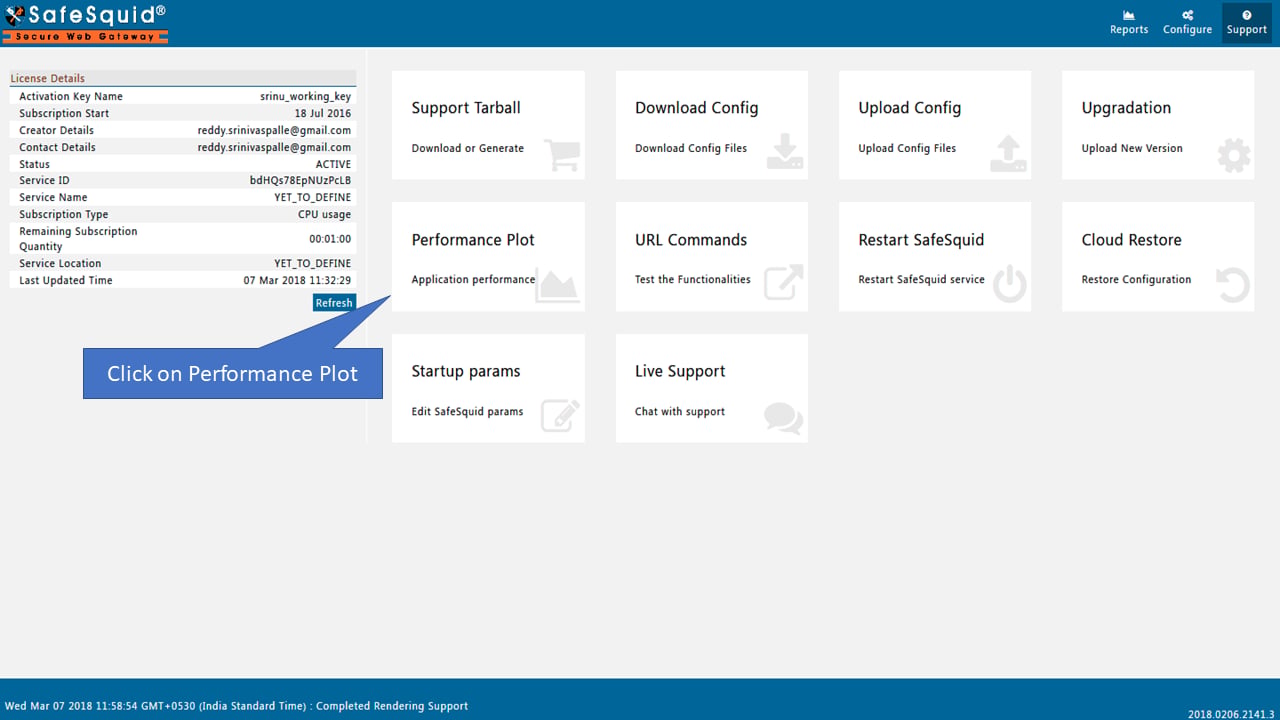

Open the performance plot tool

Access the Configuration Portal, then open Support and locate the performance plot function.

​

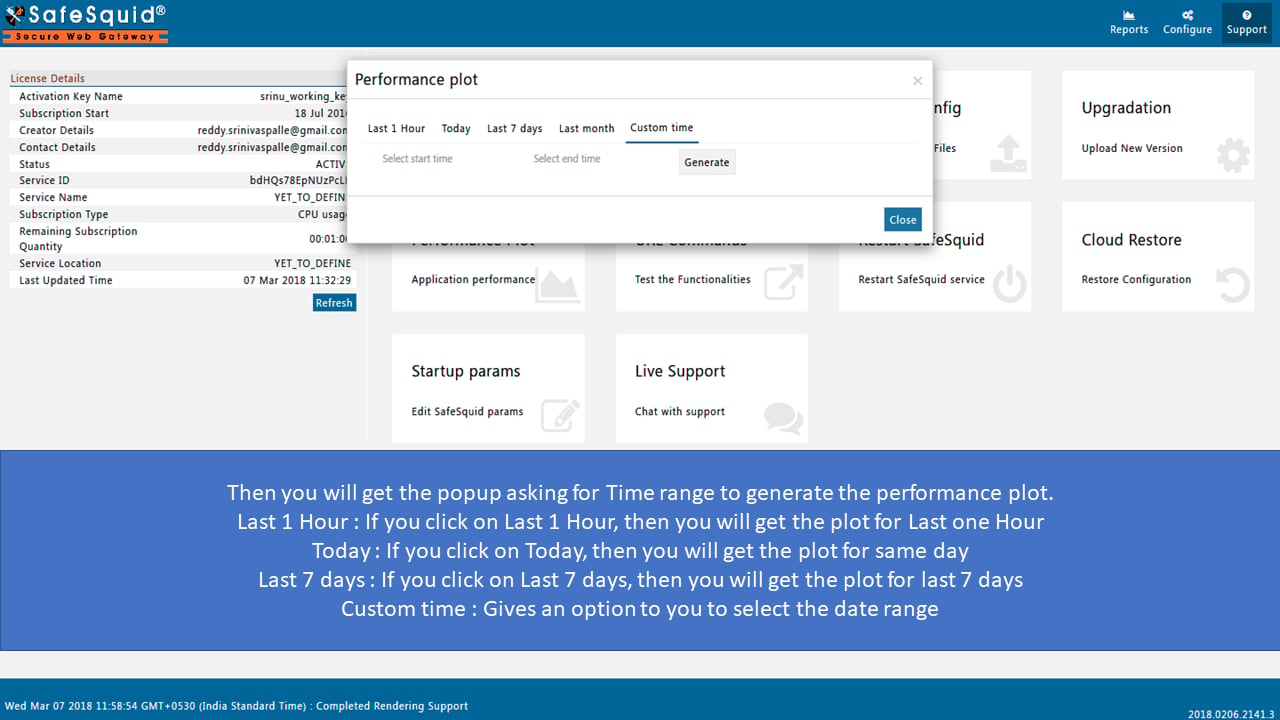

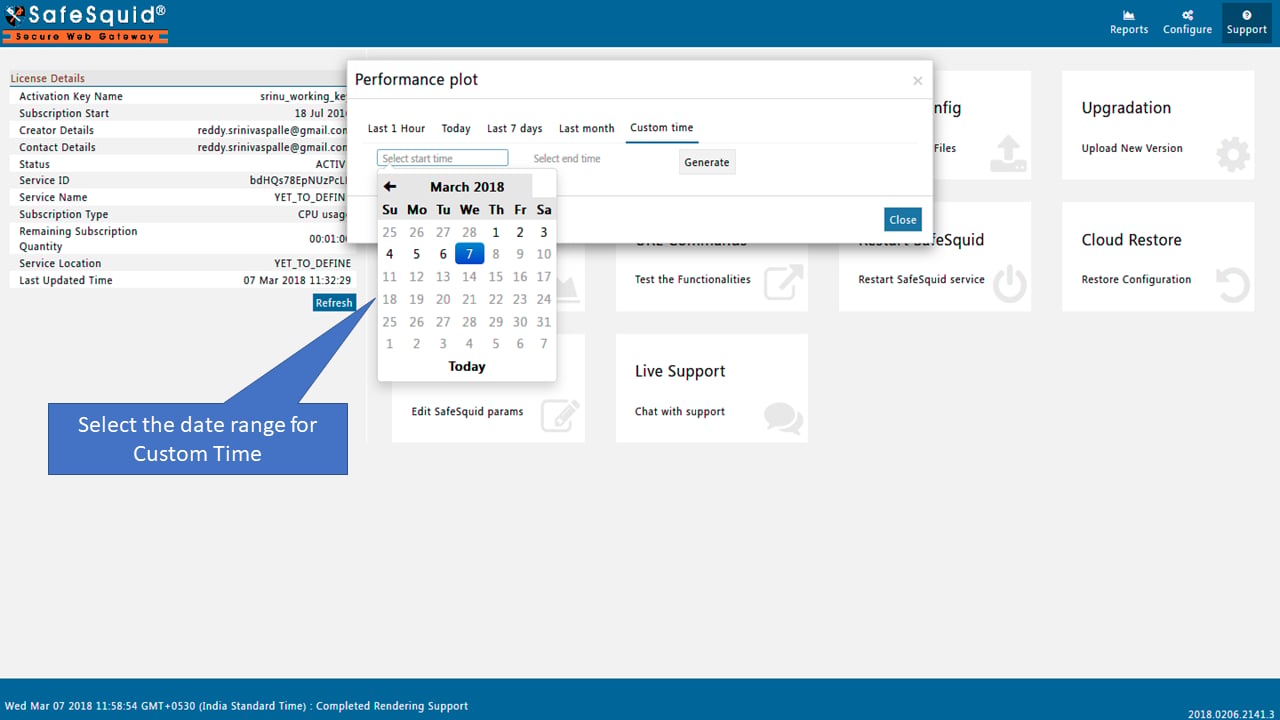

Select the right time range

Choose the time range that matches the incident or observation window. If the issue lasted only a short period, use a tight time range first. This reduces noise and makes the plot easier to interpret.

​

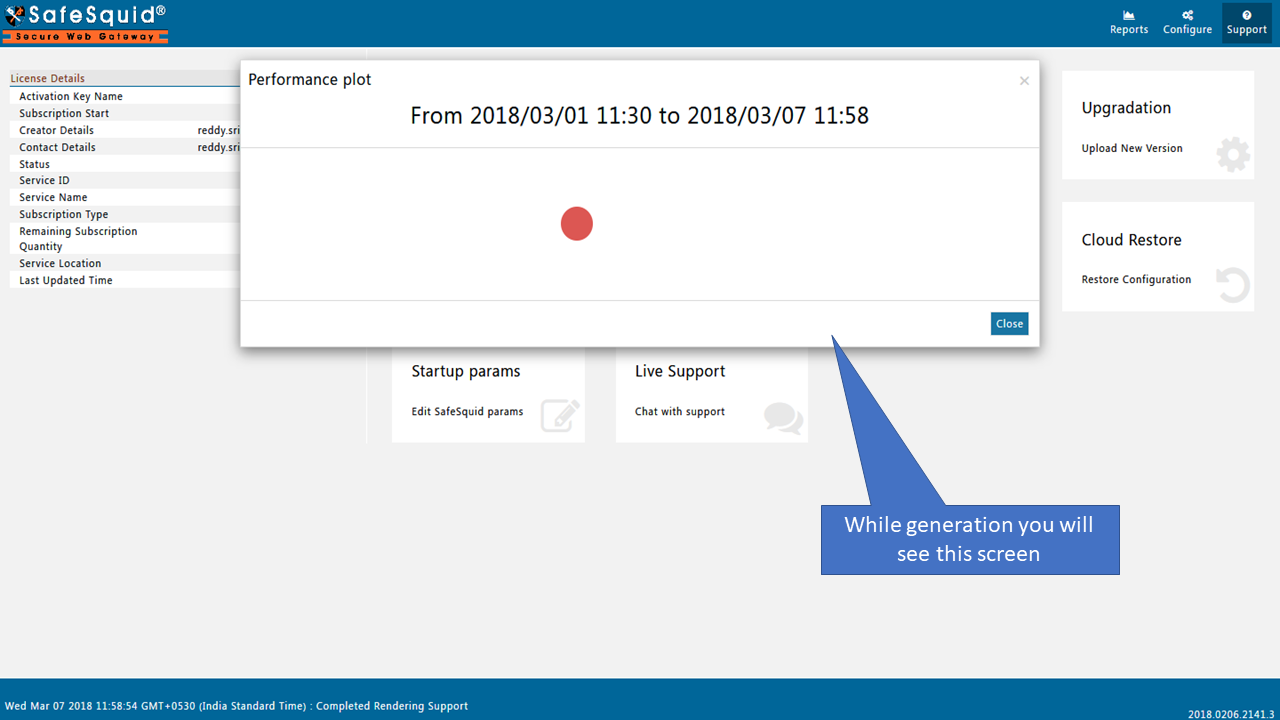

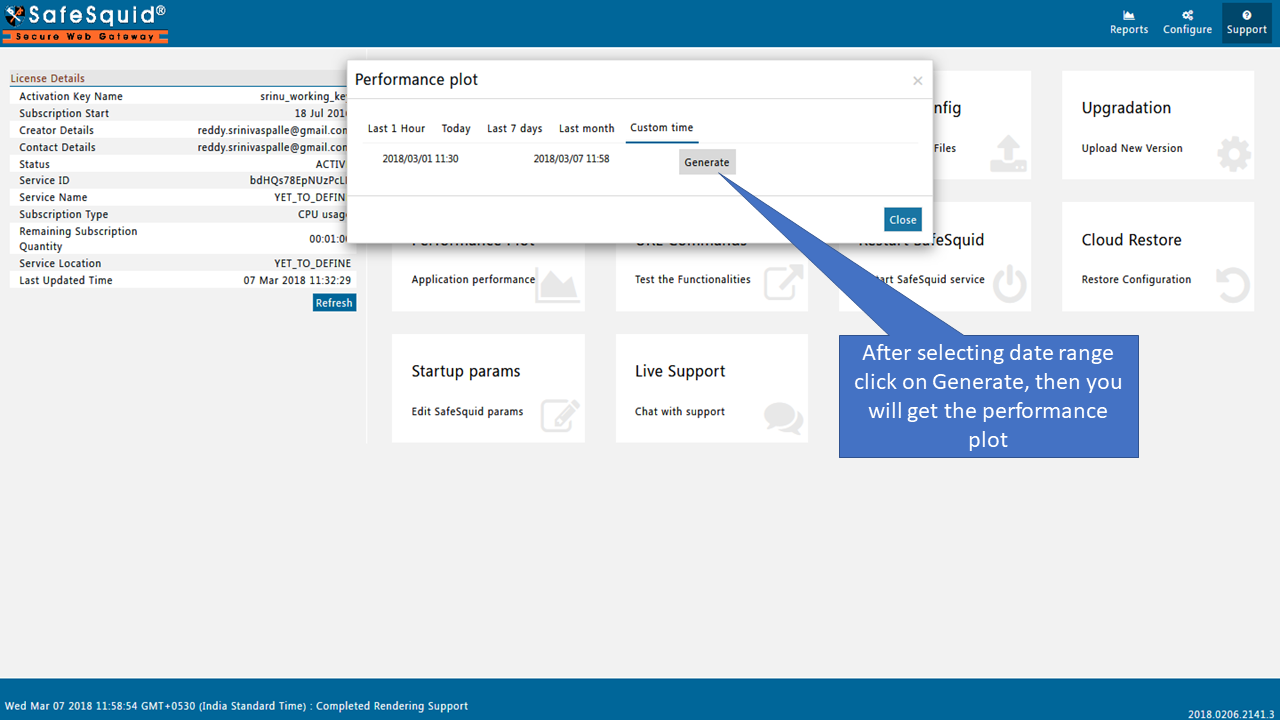

Generate the plot

Run the plot generation action from the interface after selecting the desired window.

​

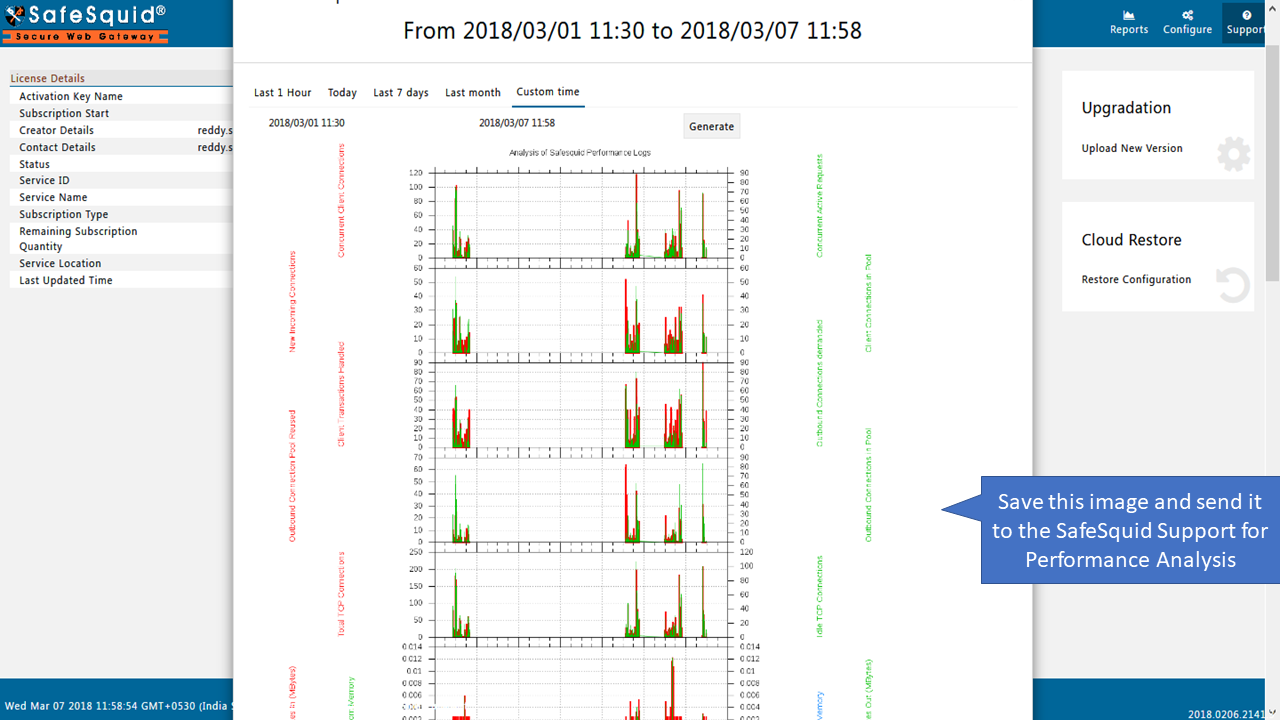

Save the generated evidence

Save the plot when it captures a useful incident or baseline window. This helps with later comparison, escalation, and post-incident review.

​

Verification and validation

​

Positive test

Generate a plot for a known busy period. Expected result:

• the plot renders successfully
• the chosen time window matches the requested period
• the output is usable for operational review

​

Negative test

Generate a plot for a quiet period or a very narrow window with little traffic. Expected result:

• the plot still renders
• low activity is visible as low activity, not as a tool failure

​

Evidence to retain

• the selected time range
• the saved plot file
• any related incident ticket or change reference

​

Troubleshooting guide

​

The plot does not generate

Likely causes:

• the plotting dependency or script path is broken
• the selected range has a tooling or data issue

Isolation steps:

• compare the behavior against the dedicated troubleshooting runbook
• verify whether other support functions work normally

Remediation:

• use Troubleshooting
• retest with a known-good date range

​

The plot generates but is not useful

Likely causes:

• the time range is too broad
• the incident window is wrong
• the operator is using the plot without corresponding log context

Isolation steps:

• rerun the plot for a tighter window
• compare the time window against user reports and logs

Remediation:

• narrow the range
• correlate with Security Logs and Reporting Module

​

Related controls / next steps

• Use Troubleshooting if the plotting workflow fails.
• Use Reporting Module for transaction-level evidence alongside the performance view.
• Use Security Logs when you need exact event correlation rather than only trend visualization.
