Turn dashboard data into evidence
Problem statement
Dashboards often look useful while failing real investigations. If operators cannot move from a chart to a specific user, destination, policy event, and time window, reporting becomes presentation material instead of operational evidence.Client scenario
Use the Reporting Module when you need to:- investigate a user, group, destination, or policy outcome quickly
- prove activity during a specific time window
- export evidence for audit, management review, or incident response
- tune policy from observed traffic instead of assumptions
Key benefits
The Reporting Module provides a fast investigation surface for recent activity and a practical way to narrow from summary view to specific transactions. It complements raw logs by helping operators identify where to look and what to export.Prerequisites
Client-side preparations
- Know the user, group, destination, or incident window you want to investigate.
- Confirm the traffic of interest actually passed through SafeSquid.
SafeSquid-side setup
- Ensure dashboard reporting is available and receiving current data.
- Use raw logs as the fallback source when the dashboard view is too narrow or a time window must be validated precisely.
Setup instructions

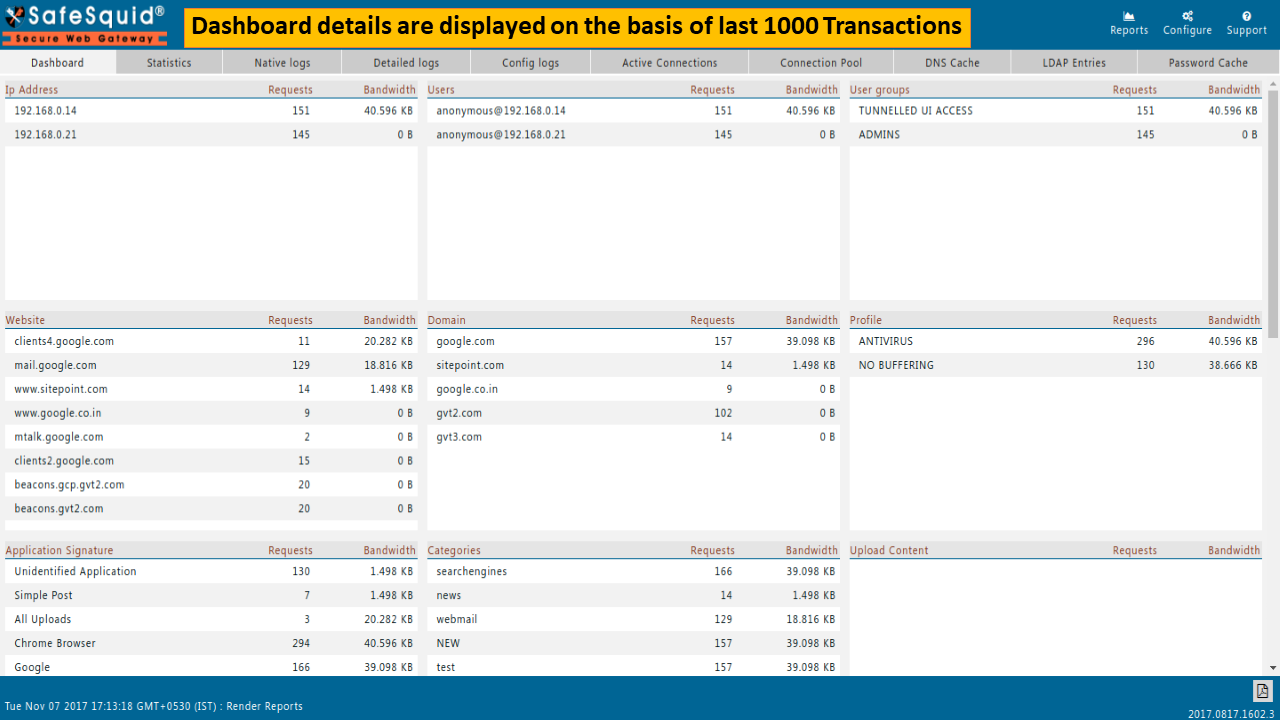

Start from the dashboard view

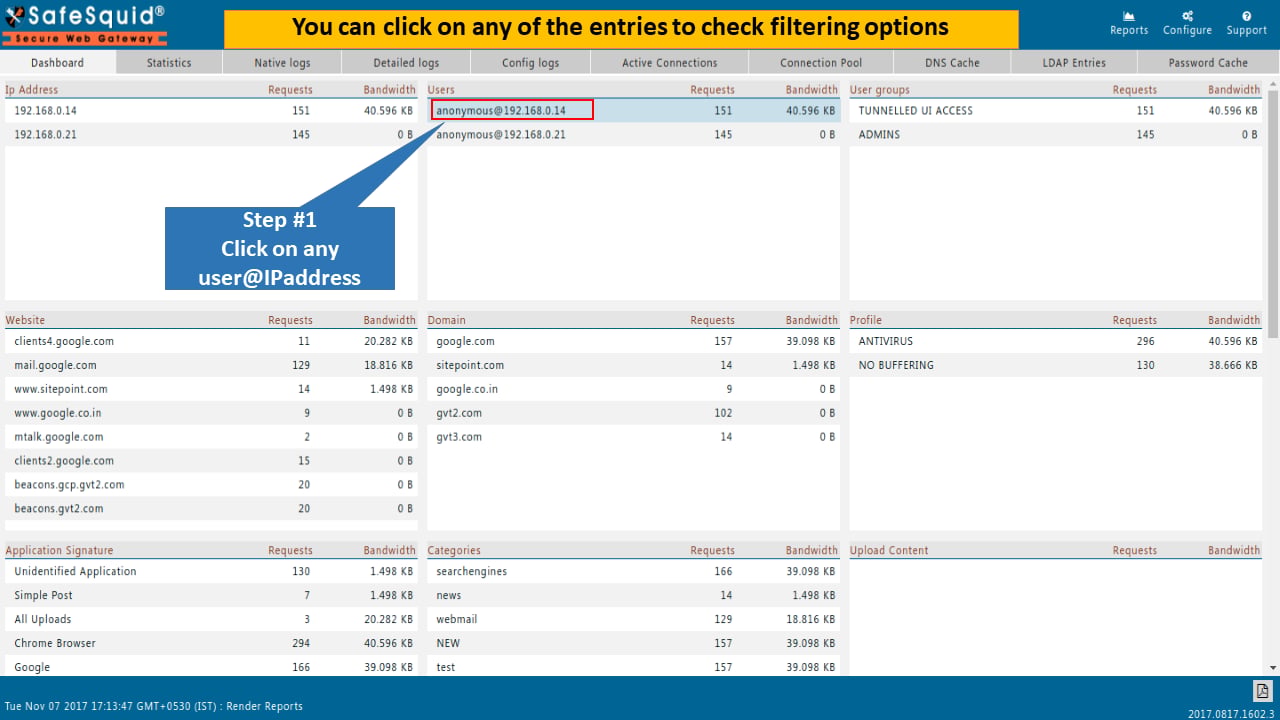

Open Reports → Dashboard and review the current report scope. Dashboard data defaults to recent transactions, so begin by deciding whether you need transaction-count scope or date-range scope.Drill into the first reliable signal

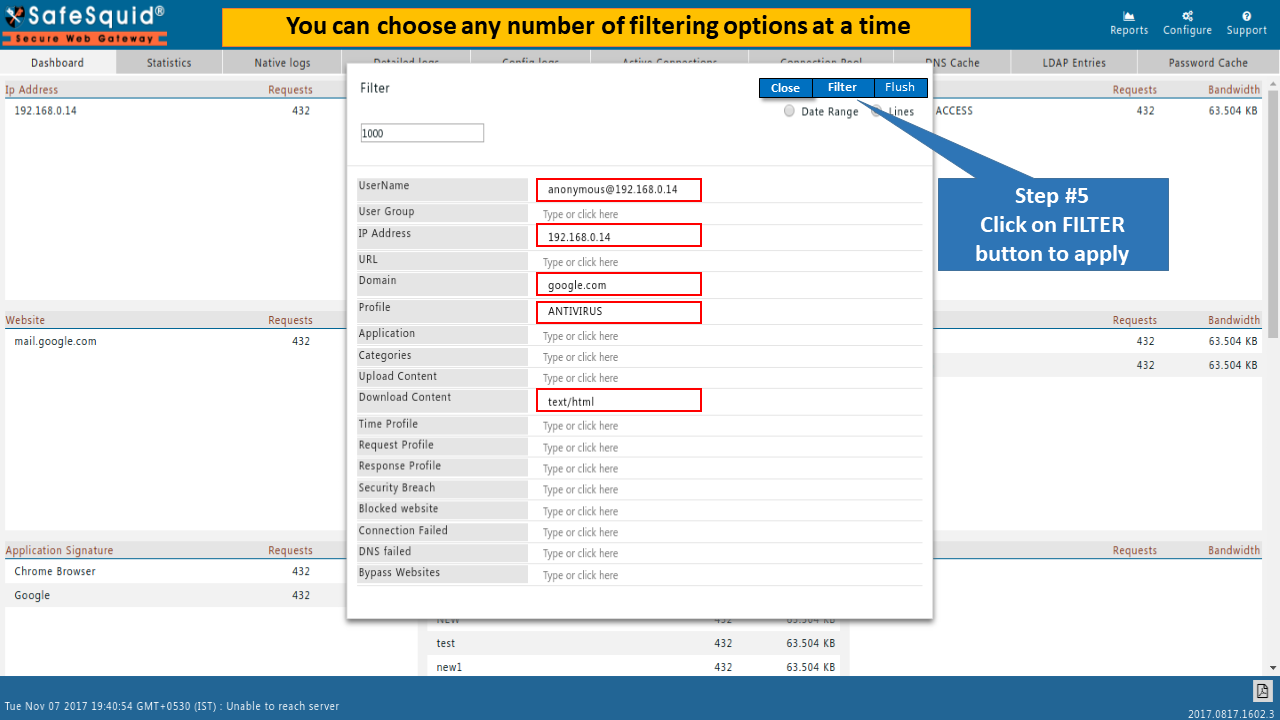

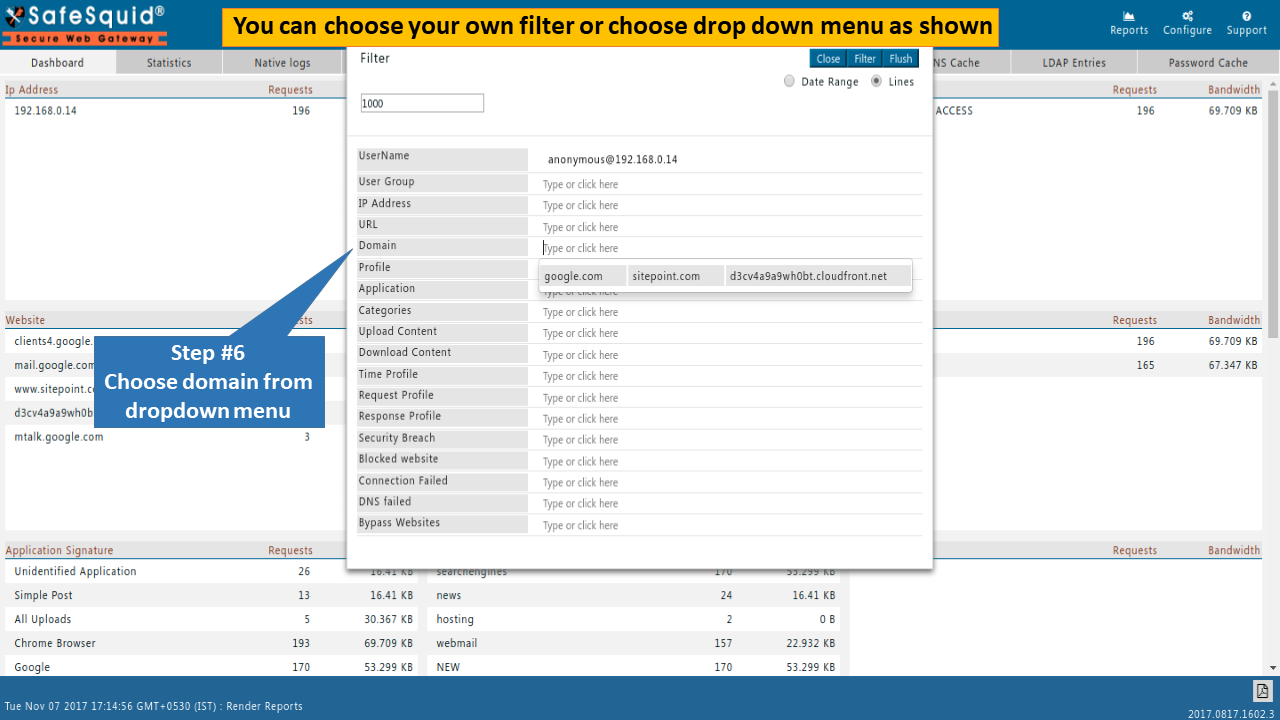

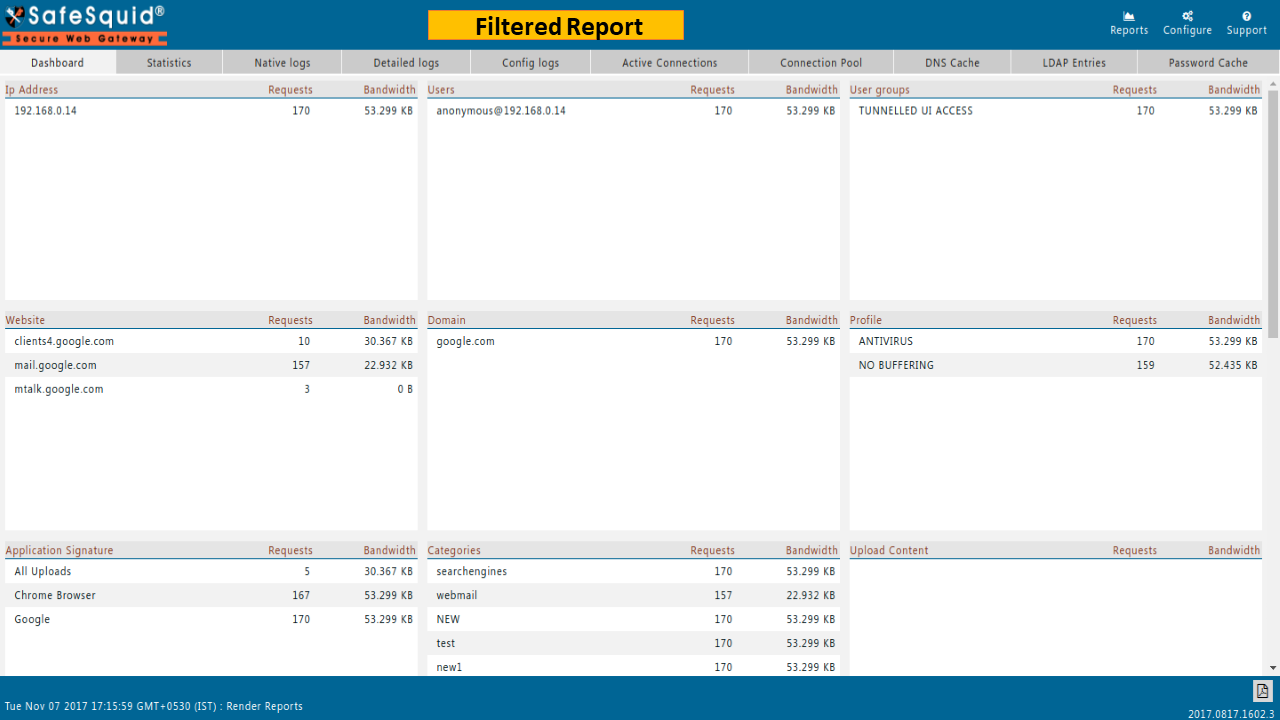

Click a useful entry such as:- user name
- user group
- IP address
- domain
- blocked websites
- security breaches
- categories
- application signatures

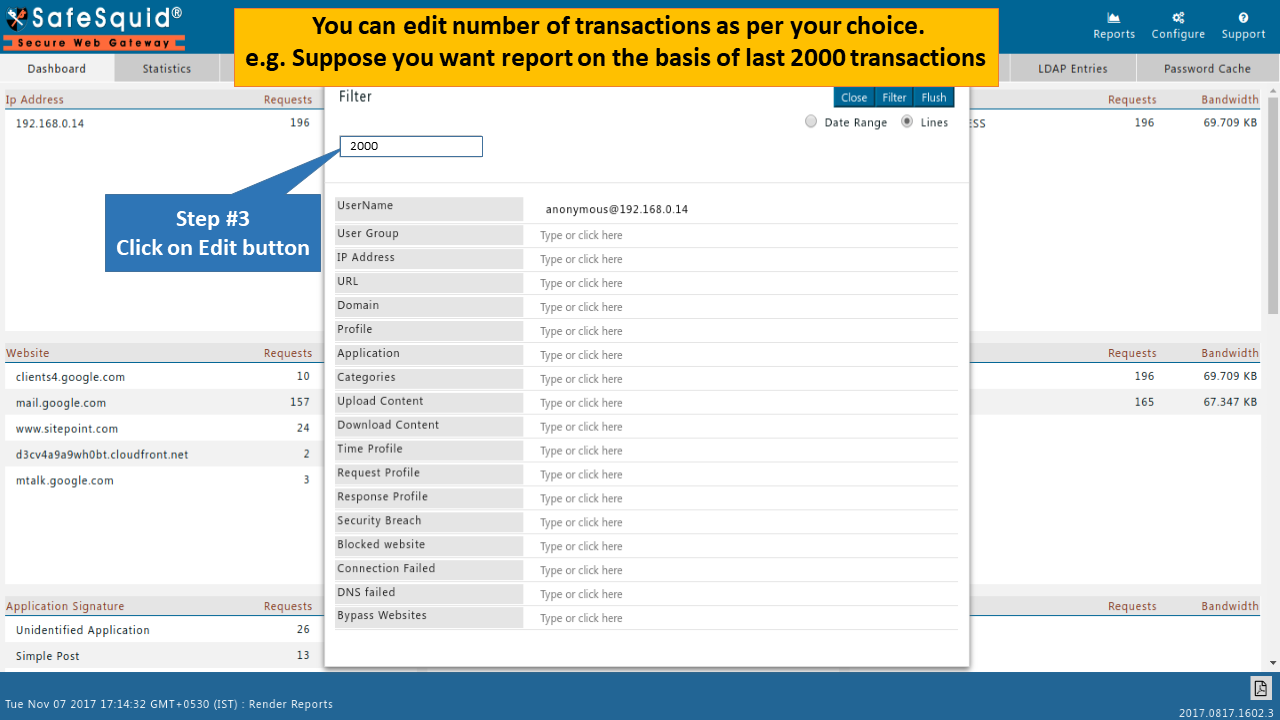

Adjust the transaction range when needed

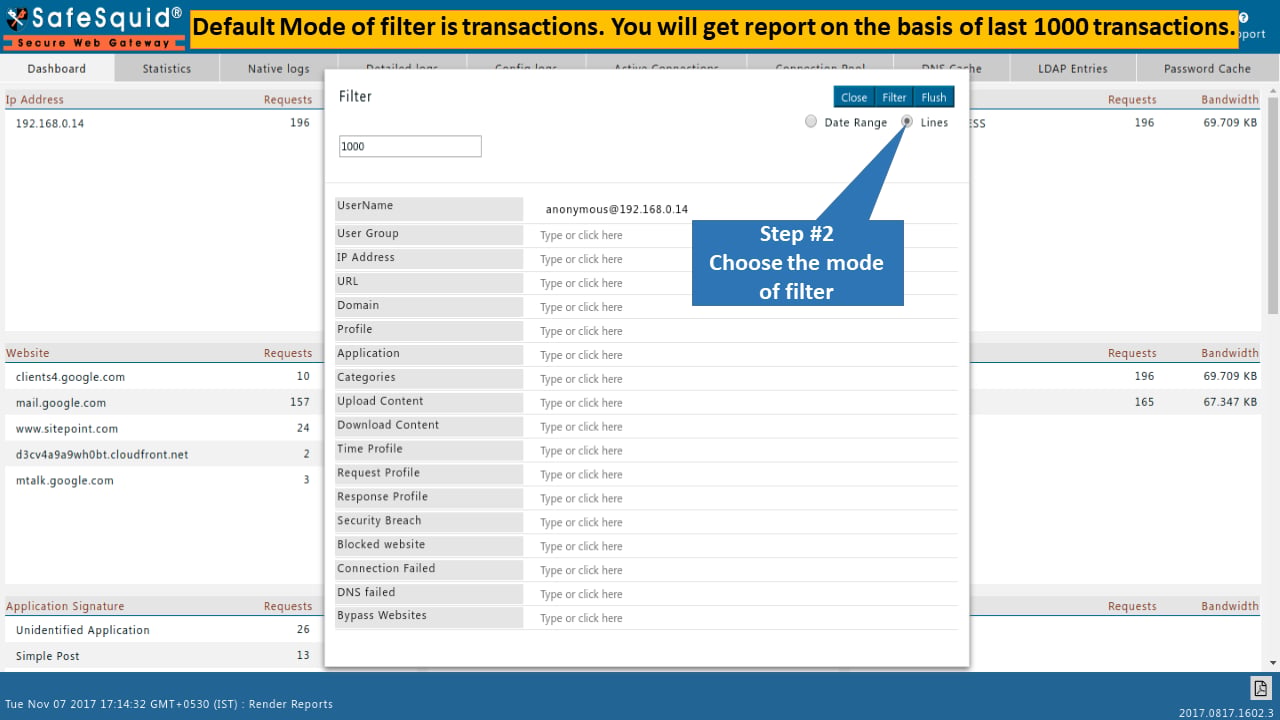

SafeSquid reports on a recent transaction set by default. Increase or narrow the range based on the event you are investigating.

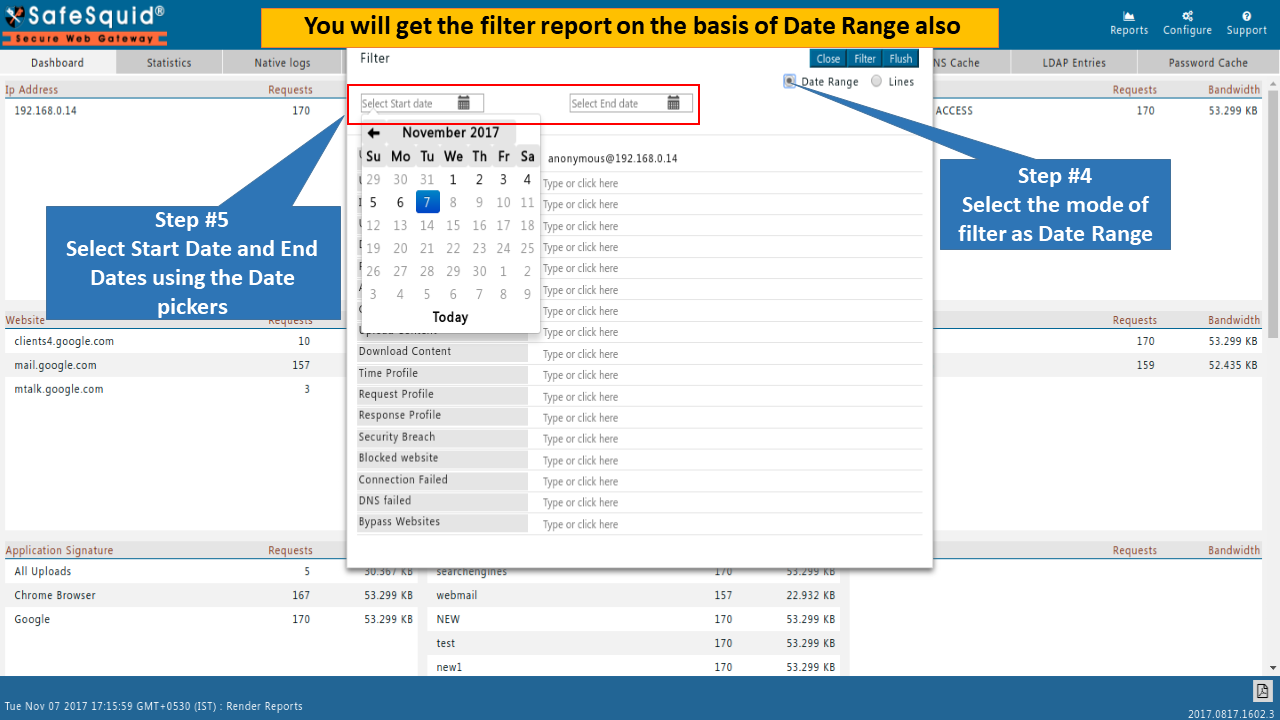

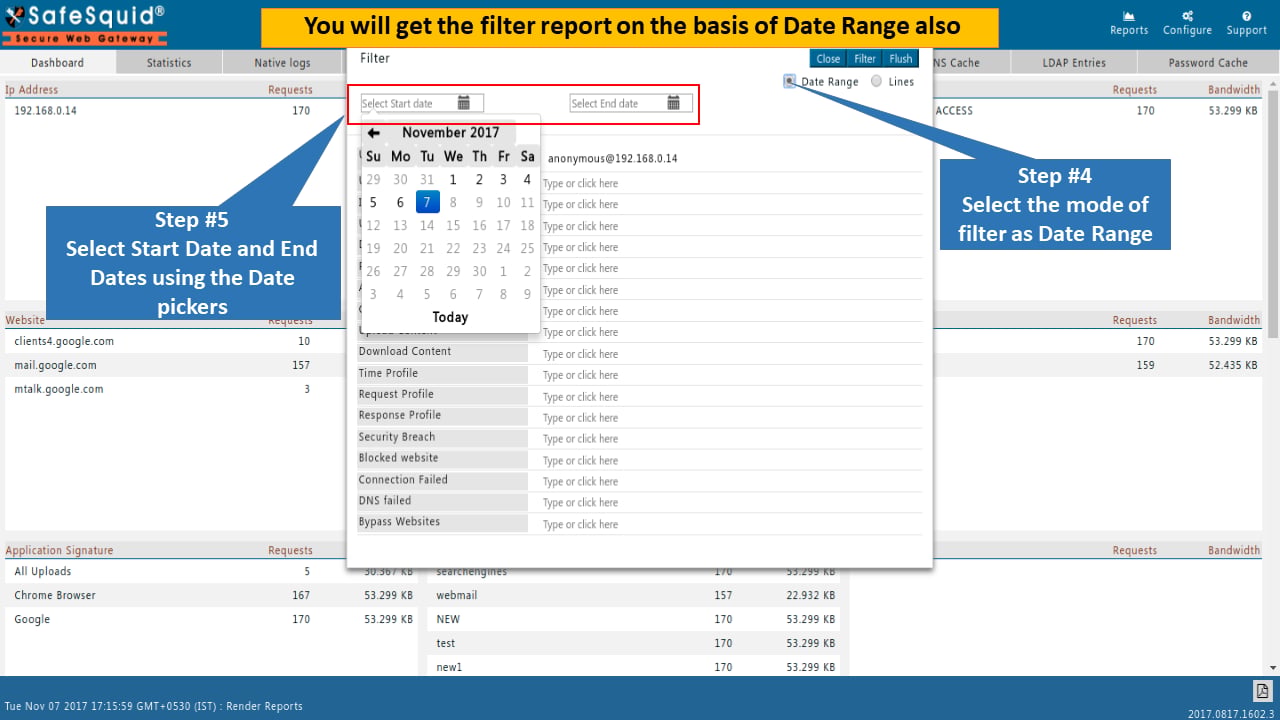

Switch to date-range evidence for incident review
When the event belongs to a known time window, use the date-range filter instead of relying only on the recent transaction view.
Export what you prove

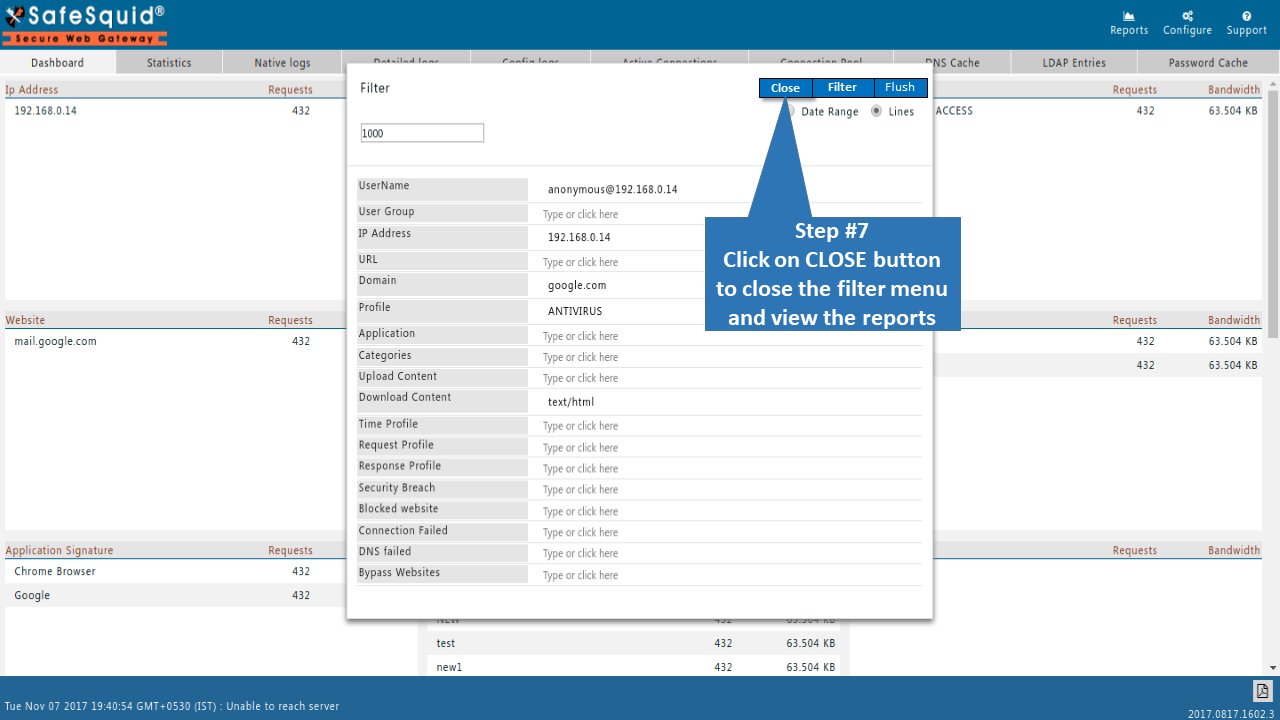

When the report reflects the correct user, activity, and time range, export the result for review or audit use.Verification and validation
Positive test
Trigger a controlled request, then locate it through the dashboard using a user, IP, or destination filter. Expected result:- the event appears in the reporting window
- drill-down narrows the result to the intended transaction set
- the exported report reflects the same filtered evidence
Negative test
Search for a user or destination that should not appear in the chosen time window. Expected result:- the report remains empty or excludes that activity
- operators do not mistake stale or unrelated data for current evidence
Evidence to retain
- the exact filter path used
- the time range or transaction range selected
- the exported report file
- any corresponding log query used to corroborate the finding
Troubleshooting guide
Expected activity is missing from the dashboard
Likely causes:- the report scope is too narrow
- the filters are too restrictive
- the activity did not pass through the expected SafeSquid path

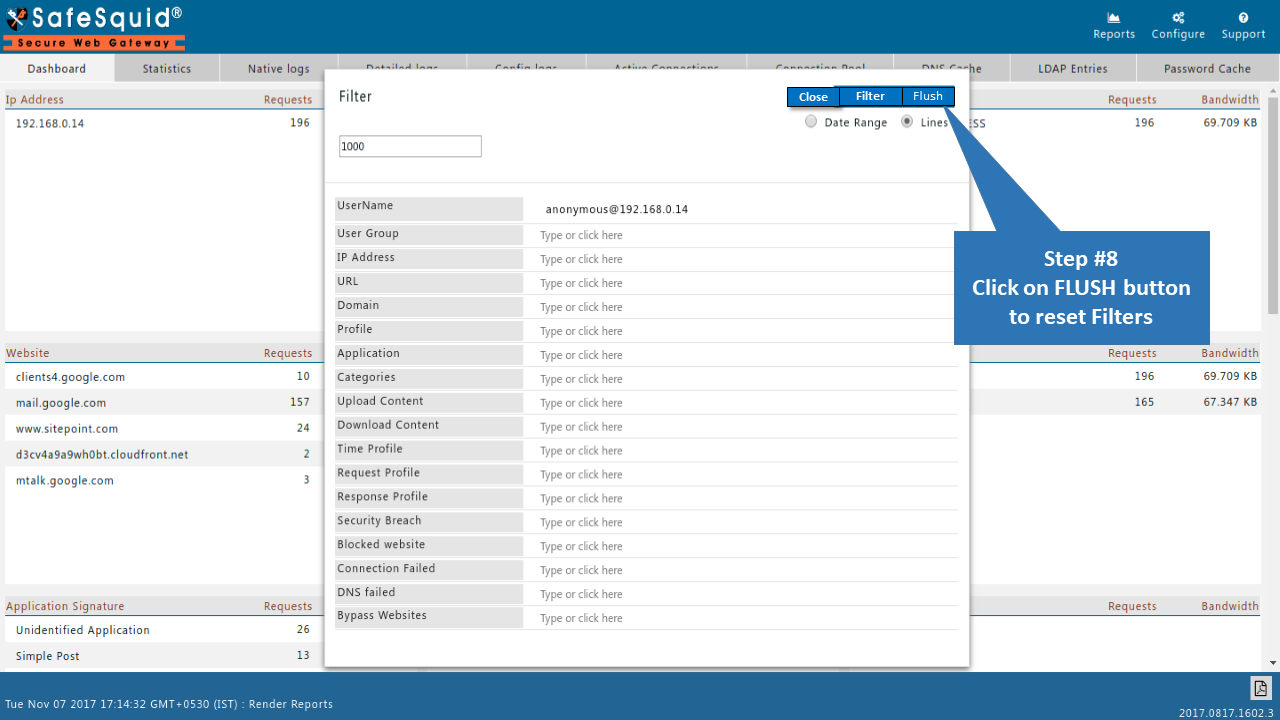

- reset filters
- widen the transaction range or date range
- compare against raw logs
- correct the scope
- validate the traffic path
- rerun the report with a narrower filter only after the event is visible
The dashboard shows activity, but it is not precise enough for evidence
Likely causes:- operators are stopping at summary widgets
- the transaction window is too broad
- raw log corroboration was skipped
- drill down by a more specific field
- reduce the time range
- compare the same event against logs
- preserve both the report export and the supporting log reference
- use the dashboard to find the event, then use logs to prove it precisely
Related controls / next steps
- Use Security Logs for raw evidence and deep investigation.
- Use Performance Plot for time-based load and capacity context.
