BASIC Authentication

Browser-prompt authentication with usernames and passwords stored locally in SafeSquid. No directory infrastructure required; credentials are managed locally in SafeSquid or via OS users. Use when you need identity-based access control without Active Directory or LDAP.

​

Problems addressed

Some sites lack Active Directory or LDAP. Operators still need named identities in logs and access rules instead of anonymous client IPs.

​

Outcomes operators expect

• Browser prompts and successful binds recorded in identity.log when configured correctly.
• Identity-aware Allow List rules without directory infrastructure.

​

Advantages vs directory-backed authentication

BASIC avoids directory rollout cost and suits small or isolated footprints. Trade-off: local credential hygiene, no central SSO, and transport caveats in Security consideration below.

​

Acquire, deploy, use

Follow Enable browser authentication through Verification; then combine with Access Restriction and optional SSL Inspection.

​

When to use BASIC authentication

:::caution Security consideration BASIC authentication sends credentials in base64 encoding (not encrypted). Use only on:

• Internal networks, or
• HTTPS proxy connections, or
• With SSL inspection enabled

For production deployments with external access, use Directory Services with TLS. ::: :::note Prerequisites

• SafeSquid deployed and operational
• Admin access to SafeSquid configuration interface (http://safesquid.cfg/ — embedded Rest UI, NOT DNS-resolved)
• Browser configured to use SafeSquid as proxy (see Connect Your Client) :::

​

Enable browser authentication

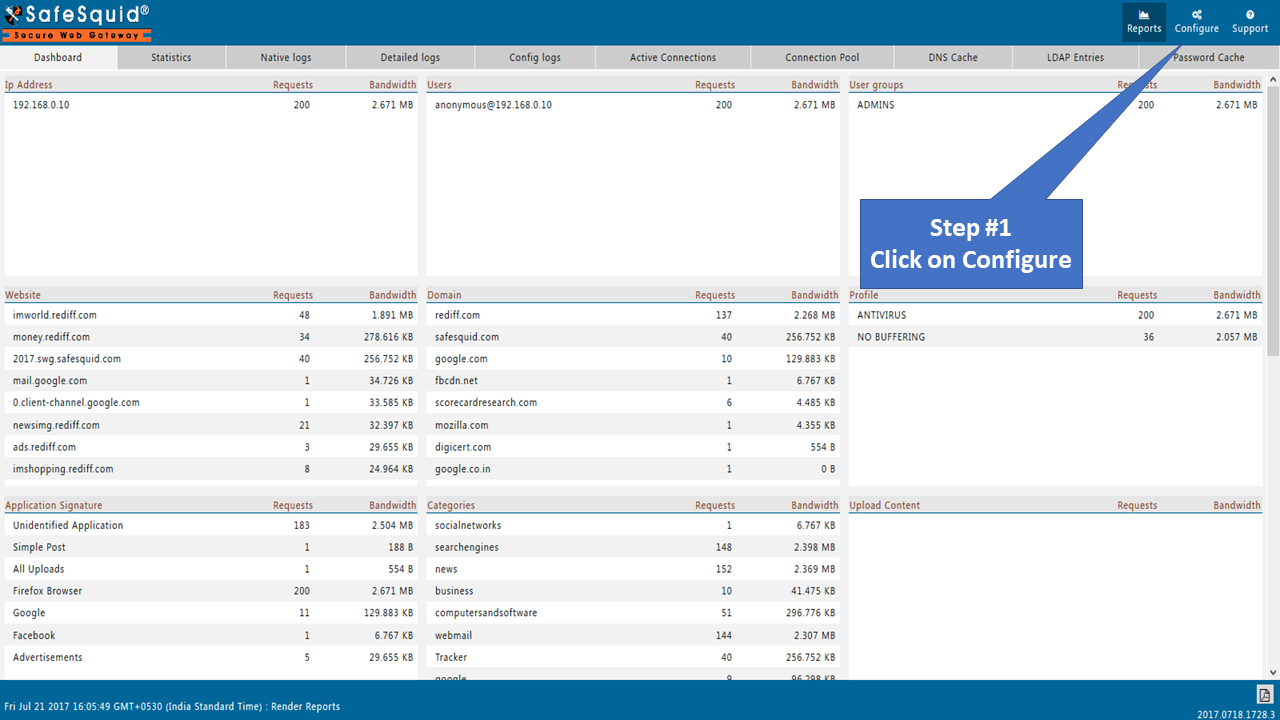

1. Access SafeSquid Configuration
   Open http://safesquid.cfg/ through a browser using the SafeSquid proxy.

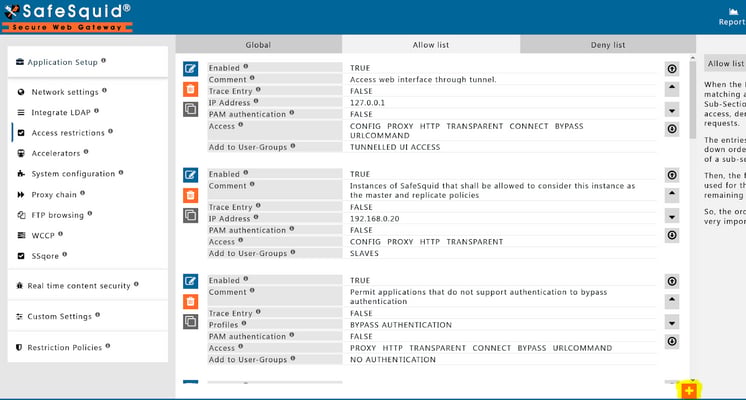

2. Navigate to Access Restrictions
   Application Setup → Access Restrictions → Allow List
   Click the orange + icon to add a new entry.

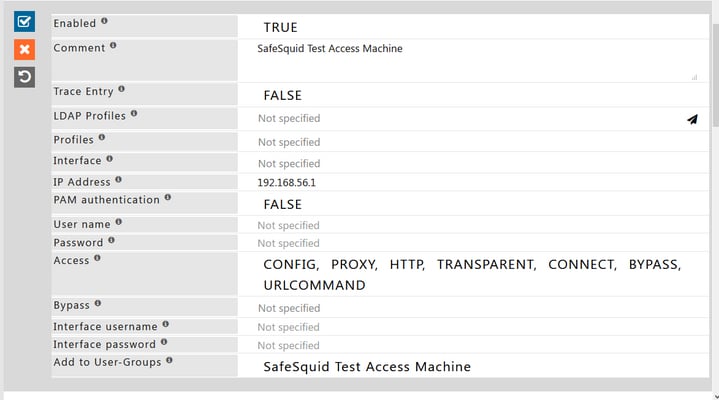

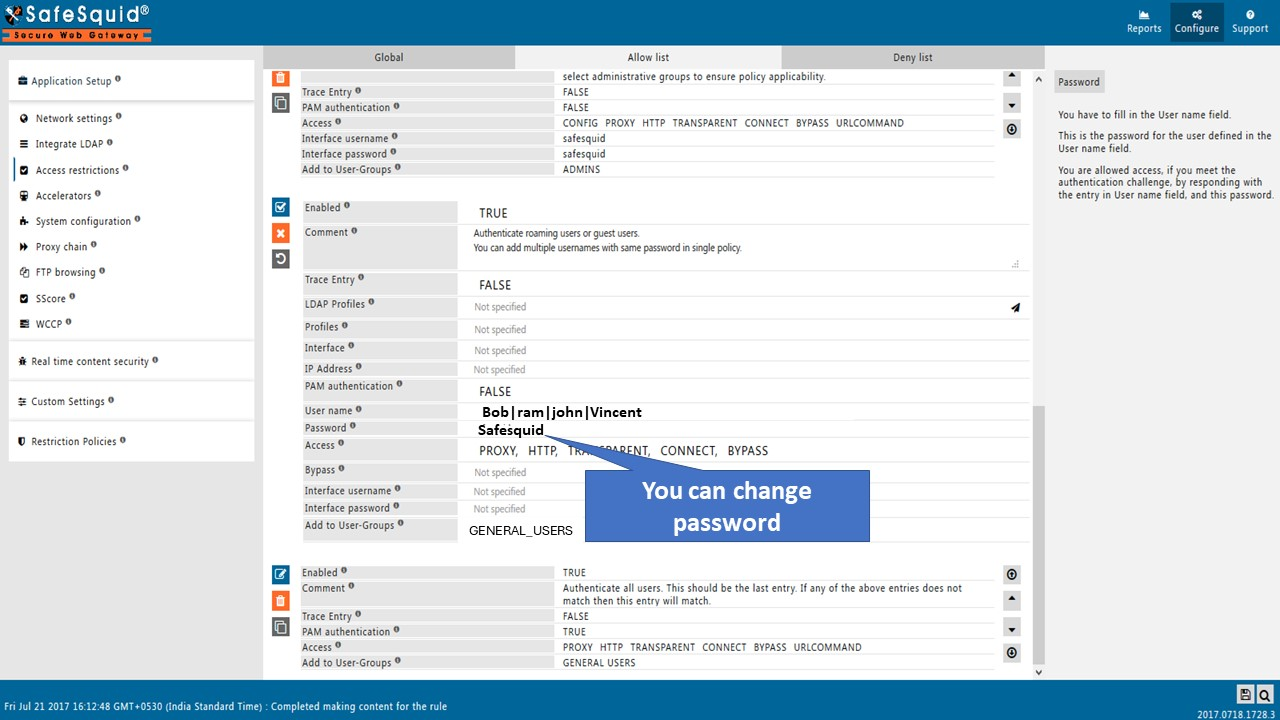

3. Configure Authentication
   In the new rule window:
   • Set PAM Authentication to FALSE (we’re using local credentials, not OS PAM)
   • Leave Username and Password empty to apply authentication to all users (or enter specific username/password to restrict this rule to a single user)

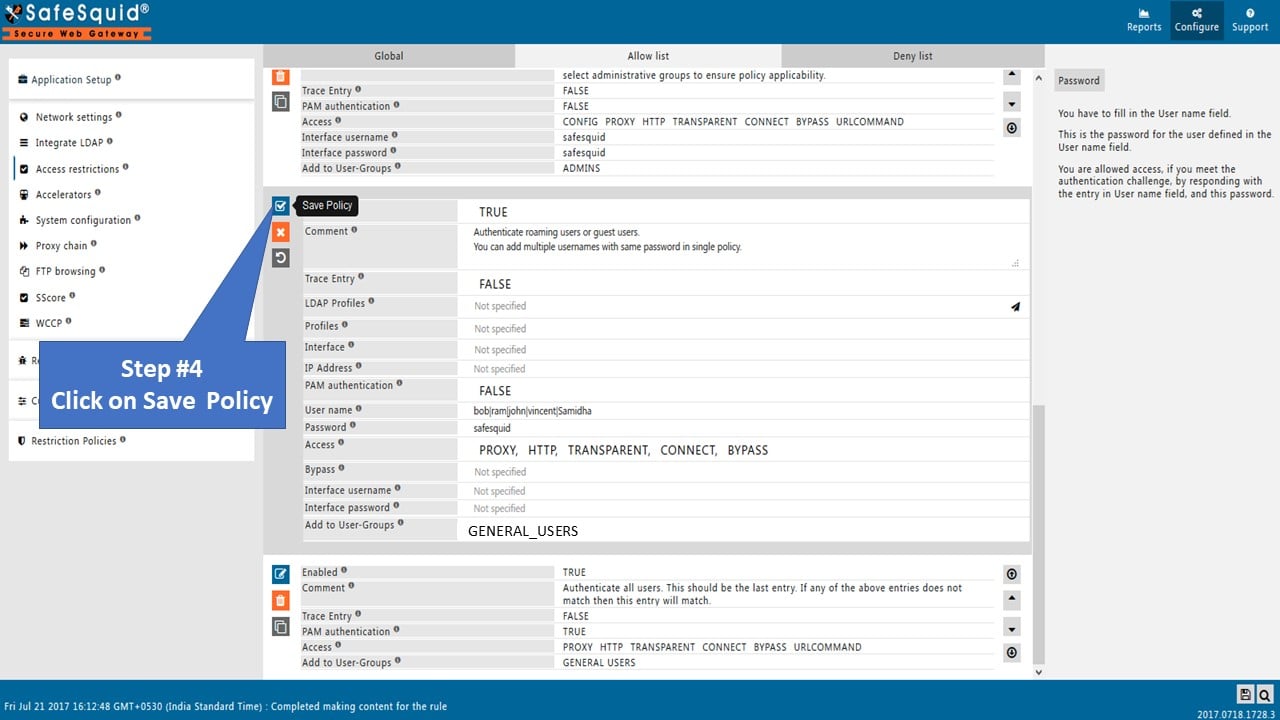

4. Save the Configuration
   Click the checkmark to save the rule.

:::tip This creates the authentication requirement. Users will be prompted for credentials when browsing. Next step: add users. ::: :::tip Apply changes After adding users or modifying access rules, click Apply in the Access Restrictions section to activate the changes immediately without restarting SafeSquid. :::

​

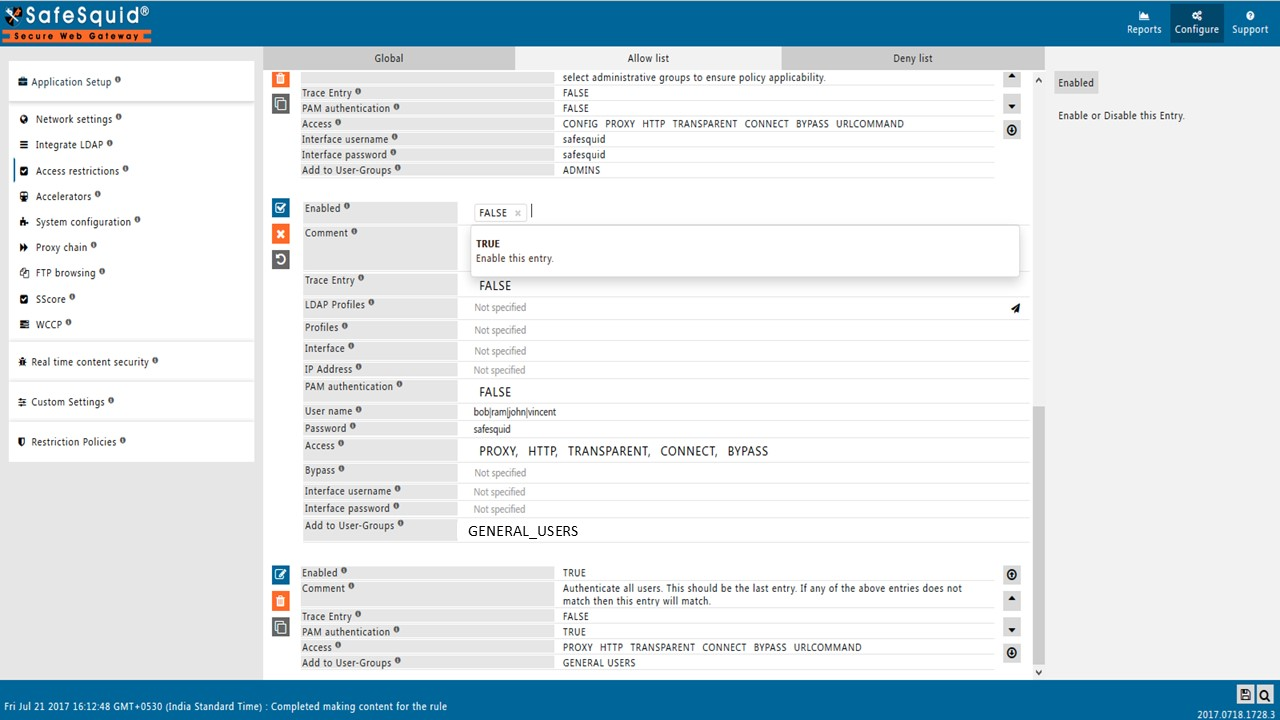

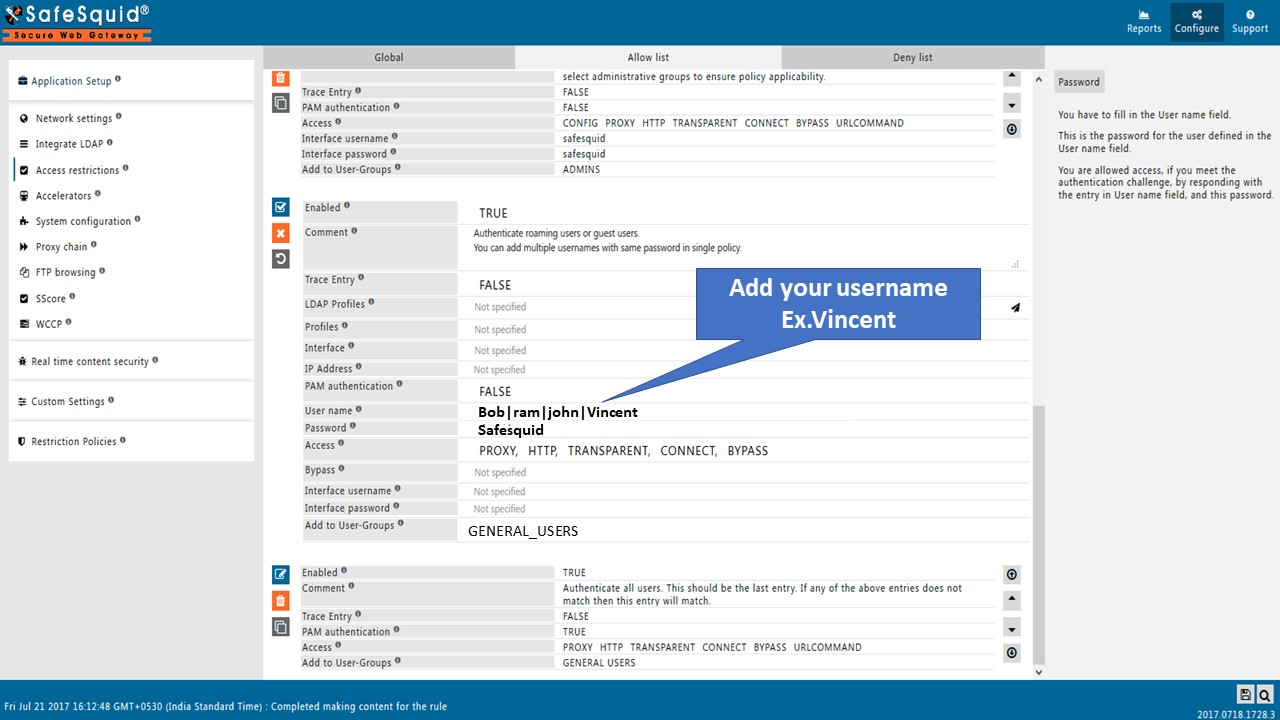

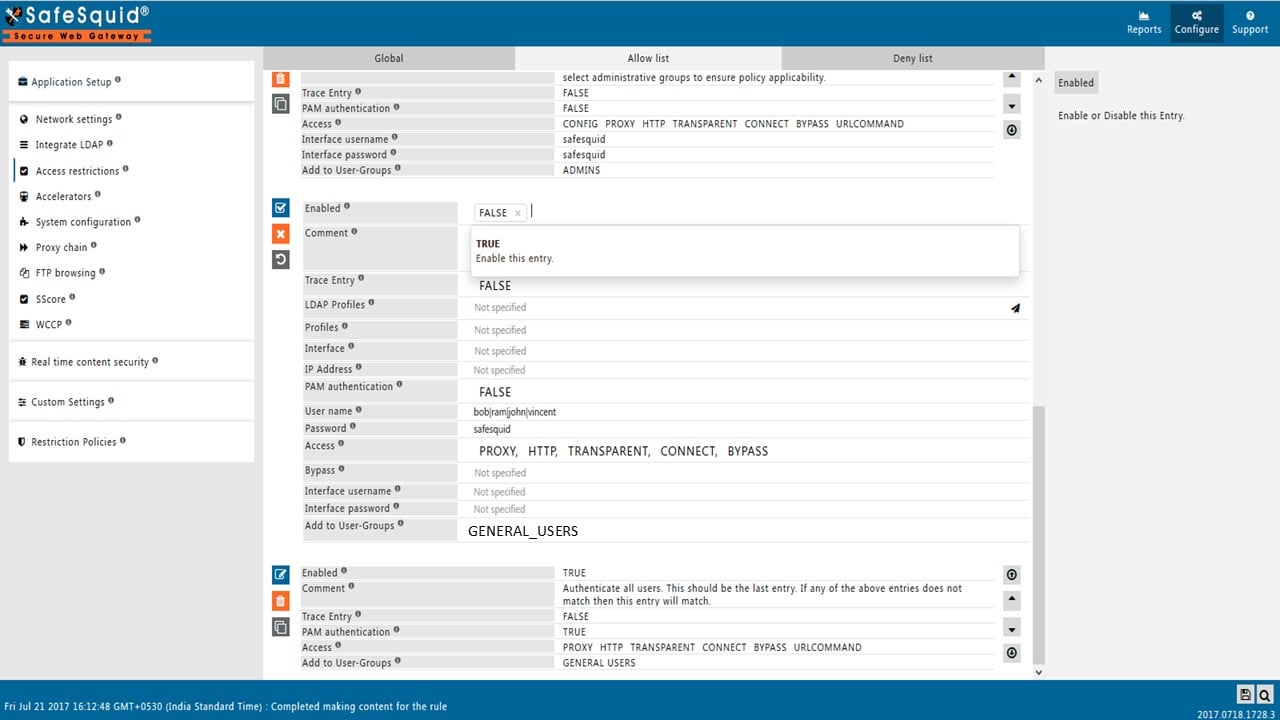

Add users

​

Verification

1. Test Authentication Flow
   • Open a browser configured to use SafeSquid as proxy
   • Browse to any external site (e.g., http://example.com)
   • Authentication prompt should appear
   • Enter configured credentials
   • Access is granted when authentication succeeds
2. Verify in Interface

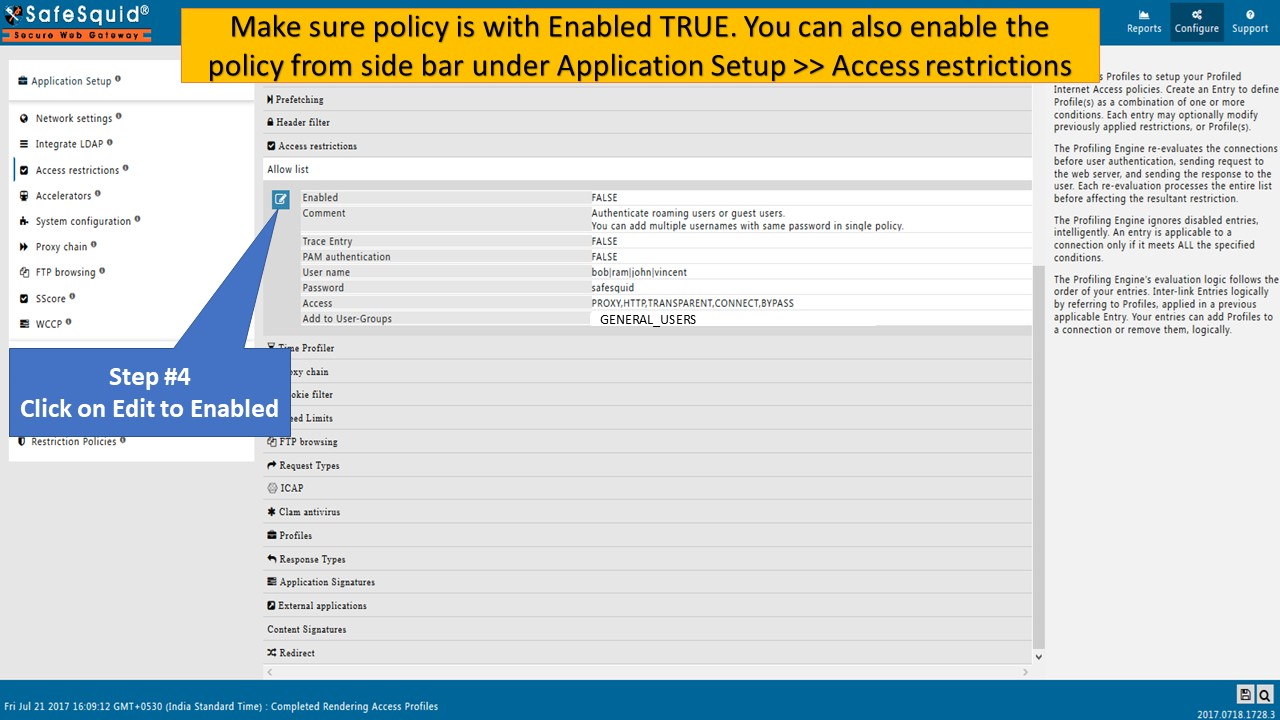

   Access Restrictions → Allow List shows the rule with authentication enabled
3. Check Logs
   tail -f /var/log/safesquid/identity.log

   You should see entries with authenticated usernames for proxied requests.

​

Troubleshooting

​

Credential management best practices

SafeSquid’s local credential store does not enforce password policies automatically. Implement these manually:

• Password strength: Require min 12 chars with complexity when creating accounts
• Rotation: Manually update credentials every 90 days for compliance
• Audit: Review /var/log/safesquid/identity.log monthly for unauthorized attempts
• Segregation: Create separate user accounts for different roles/groups

For automated password policy enforcement, migrate to Directory Services.

​

Source register

​

Next steps

• Add group-based policies: Combine authentication with Access Restriction to enforce different rules per user or group
• Attribute HTTPS traffic: Enable SSL Inspection so encrypted traffic shows authenticated usernames in logs
• Upgrade to directory: Migrate to Directory Services when user count grows or centralized identity is required
• IP-based fallback: Use the Architecture hub for devices that cannot authenticate
• Bypass apps: Configure Bypass Authentication for OS updates and automatic processes
