SSO Authentication with RODC

Problem: Kerberos SSO in RODC Environments

In distributed networks where Read-Only Domain Controllers (RODCs) are used, direct configuration of Kerberos identities is impossible due to the read-only nature of the database. Attempts to create computer objects or modify SPNs on an RODC will fail. Users at RODC-controlled sites often face 407 authentication prompts because the RODC is “blind” to the SafeSquid computer object until it is explicitly created on a Writable DC and replicated.

Key benefits

Global Single Sign-On: Authenticated users at RODC sites access the proxy without credential prompts.
Security Alignment: Enforces AES-256 encryption across all sites.
Centralized Management: Configure once on the Writable DC (RWDC) and replicate automatically to all RODC locations.
Zero Admin Overhead: Automation script handles complex AD attribute mapping (UAC Flags, SPNs, Encryption Types).

The Concept: Kerberos Lookup & the “Push”

To understand why the Main DC is vital, consider the Kerberos-RODC flow: Why it matters: The RODC cannot issue a ticket unless it “knows” SafeSquid exists. Since it can’t create the account itself, you must Push the “Source of Truth” from the Main Writable DC.

Prerequisites

Perform all operations on a Writable Domain Controller (RWDC).
Target the PDC Emulator: To avoid “Referral” or “Unwilling to process” errors, we explicitly find and target the Primary DC.

# Run this first to identify your Writable DC
$TargetDC = (Get-ADDomainController -Discover -Service PrimaryDC).HostName | Select-Object -First 1
Write-Host "Operations will be performed on: $TargetDC" -ForegroundColor Cyan

Configuration Breakdown

Service Principal Names (SPNs)

Seven SPNs are required. The hostname used by msktutil must match the AD object’s registration exactly.

Attribute	Required Value / Placeholder
Name	`safesquid`
SamAccountName	`safesquid$`
UPN	`safesquid.<REALM>@<REALM>`
UAC Bitmask	`33624064` (Workstation + No Expiry + No Pre-Auth)
Encryption Type	`28` (AES 128/256 Support)

Placeholder Reference Table

Use this table to identify which values in the commands and scripts need to be replaced with your environment’s specific details.

Placeholder	Description	Example Value
`<SafeSquid_ISO_Hostname>`	The hostname of your SafeSquid ISO/Virtual Machine.	`safesquid-proxy-01`
`<your.domain.name>`	Your Active Directory domain name (FQDN).	`company.local`
`<REALM>`	Your AD domain name in ALL CAPS.	`COMPANY.LOCAL`
`$ComputerName`	The name of the AD computer object. Do not change this.	`safesquid`
`<RODC_Hostname>`	The hostname of your Read-Only Domain Controller.	`rodc-01`
`<RODC_IP>`	The IP address of your Read-Only Domain Controller.	`192.168.1.10`

Service Principal Name (SPN) Reference Table

These seven SPNs must be registered on the SafeSquid computer object. Replace placeholders with your actual values.

SPN Type	Service Principal Name Format	Description
ISO Host (FQDN)	`HOST/<SafeSquid_ISO_Hostname>.<REALM>`	Kerberos identity for the ISO hostname.
ISO HTTP (FQDN)	`HTTP/<SafeSquid_ISO_Hostname>.<REALM>`	Used for web-based Kerberos authentication.
ISO LDAP (FQDN)	`LDAP/<SafeSquid_ISO_Hostname>.<REALM>`	Used for LDAP/AD communication.
Common Host (FQDN)	`HOST/safesquid.<REALM>`	Kerberos identity for the common `safesquid` name.
Common HTTP (FQDN)	`HTTP/safesquid.<REALM>`	Primary SPN for proxy authentication.
Common LDAP (FQDN)	`LDAP/safesquid.<REALM>`	Used for searching AD via `safesquid` identity.
Common Host (Short)	`host/safesquid`	Short name (NetBIOS) SPN for legacy compatibility.

Setup Procedure

Choose the method that fits your administration style.

Manual Steps
Automated Script

Step 1: Initialize Identity

Replace <Placeholders> with your environment values.

$TargetDC = (Get-ADDomainController -Discover -Service PrimaryDC).HostName | Select-Object -First 1
$ISO_Hostname = "<SafeSquid_ISO_Hostname>"  # e.g., 'safesquid-proxy-01'
$DomainName    = "<your.domain.name>"        # e.g., 'company.local'
$Realm         = $DomainName.ToUpper()       # e.g., 'COMPANY.LOCAL'
$ComputerName  = "safesquid"

Step 2: Create or Update Object

# Attempt to create the object on the writable DC
New-ADComputer -Name $ComputerName -Server $TargetDC `
    -SamAccountName "$ComputerName$" `
    -Path "CN=Computers,DC=$($DomainName.Replace('.', ',DC='))" `
    -DNSHostName "$ComputerName.$DomainName" `
    -UserPrincipalName "$ComputerName.$Realm@$Realm" `
    -Enabled $true

# Update core attributes if object already exists
Set-ADComputer -Identity $ComputerName -Server $TargetDC `
    -DNSHostName "$ComputerName.$DomainName" `
    -UserPrincipalName "$ComputerName.$Realm@$Realm"

Step 3: Register SPNs (Differential Update)

Only adds SPNs that are missing to avoid “Duplicate” errors.

$obj = Get-ADComputer -Identity $ComputerName -Server $TargetDC -Properties servicePrincipalName

# Define the mandatory SPN list
$Desired = @(
    "HOST/$ISO_Hostname.$Realm", "HTTP/$ISO_Hostname.$Realm", "LDAP/$ISO_Hostname.$Realm",
    "HOST/$ComputerName.$Realm", "HTTP/$ComputerName.$Realm", "LDAP/$ComputerName.$Realm",
    "host/$ComputerName"
)

# Identify which ones aren't already there
$toAdd = $Desired | Where-Object { $_ -notin $obj.servicePrincipalName }

if ($toAdd) {
    Set-ADComputer -Identity $obj.DistinguishedName -Server $TargetDC -Add @{ servicePrincipalName = $toAdd }
    Write-Host "Added missing SPNs."
}

Step 4: Security Flags (UAC & AES)

Set-ADObject -Identity $obj.DistinguishedName -Server $TargetDC `
    -Replace @{
        userAccountControl              = 33624064
        'msDS-SupportedEncryptionTypes' = 28
    }

Fully Generalized AD Script

Copy-paste this into a PowerShell (Admin) terminal on a Writable DC.

How to Run This Script

Save the Script: Copy the code below and save it as a file named Replicate-ADComputer.ps1.
Location: Save this file directly on your Writable Domain Controller (RWDC/PDC Emulator).
Execute: Open PowerShell as Administrator, navigate to the folder where you saved the script, and run it using this command:
.\Replicate-ADComputer.ps1

# =========================================================================
# SAFESQUID MASTER AD PREPARATION SCRIPT (GENERAL)
# =========================================================================
Import-Module ActiveDirectory

# --- 1. SET YOUR VARIABLES HERE ---
$ISO_Hostname = "<SafeSquid_ISO_Hostname>"
$DomainName    = "<your.domain.name>"
$ComputerName  = "safesquid"

# --- 2. AUTOMATED LOGIC ---
$SAMAccount = "$ComputerName$"
$Realm      = $DomainName.ToUpper()
$BaseDCPath = ($DomainName -split '\.' | ForEach-Object { "DC=$_" }) -join ','
$UPN        = "$ComputerName.$Realm@$Realm"
$DNSHostName = "$ComputerName.$DomainName"

# Target the Writable PDC Emulator
$TargetDC = (Get-ADDomainController -Discover -Service PrimaryDC).HostName | Select-Object -First 1
Write-Host "Targeting DC: $TargetDC" -ForegroundColor Cyan

# SPNs (Matching msktutil requirements)
$DesiredSPNs = @(
    "HOST/$ISO_Hostname.$Realm", "HTTP/$ISO_Hostname.$Realm", "LDAP/$ISO_Hostname.$Realm",
    "HOST/$ComputerName.$Realm", "HTTP/$ComputerName.$Realm", "LDAP/$ComputerName.$Realm",
    "host/$ComputerName"
)

# --- 3. EXECUTION ---
$Existing = Get-ADComputer -Filter "SamAccountName -eq '$SAMAccount'" -Server $TargetDC -Properties servicePrincipalName -ErrorAction SilentlyContinue

if ($Existing) {
    Write-Host "Object found, updating attributes..." -ForegroundColor Yellow
    Set-ADComputer -Identity $Existing.DistinguishedName -Server $TargetDC -DNSHostName $DNSHostName -UserPrincipalName $UPN
    # Differential SPN update
    $SPNsToAdd = $DesiredSPNs | Where-Object { $_ -notin $Existing.servicePrincipalName }
    if ($SPNsToAdd) { Set-ADComputer -Identity $Existing.DistinguishedName -Server $TargetDC -Add @{ servicePrincipalName = $SPNsToAdd } }
} else {
    Write-Host "Creating new computer object..." -ForegroundColor Cyan
    New-ADComputer -Name $ComputerName -Server $TargetDC -Path "CN=Computers,$BaseDCPath" -DNSHostName $DNSHostName -UserPrincipalName $UPN -ServicePrincipalNames $DesiredSPNs -Enabled $true
}

# Apply Security Flags (UAC 33624064 + AES-256 Support)
$FinalObj = Get-ADComputer -Identity $ComputerName -Server $TargetDC
Set-ADObject -Identity $FinalObj.DistinguishedName -Server $TargetDC -Replace @{
    userAccountControl              = 33624064
    'msDS-SupportedEncryptionTypes' = 28
}

Write-Host "`nSUCCESS: Active Directory is now configured for SafeSquid." -ForegroundColor Green

Phase 2: Configure Password Replication Policy (PRP)

Since the RODC is read-only, you must allow it to cache the SafeSquid computer password.

Open AD Users and Computers > Domain Controllers OU.
Right-click your RODC Object > Properties.
Go to the Password Replication Policy tab.
Click Add and select the safesquid computer account.
Ensure it is set to “Allowed”.

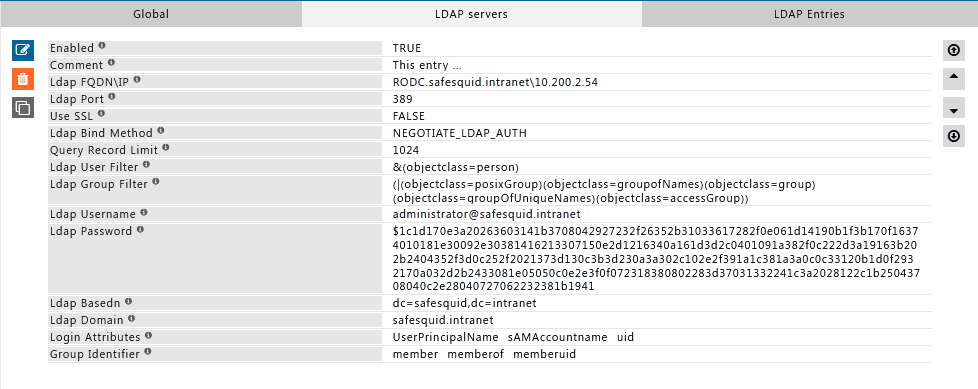

Phase 3: SafeSquid Interface Setup

Navigate to Application Setup > Integrate LDAP > LDAP servers.

Parameter	Configuration Value
Enabled	`TRUE`
Ldap FQDN\IP	`<RODC_Hostname>\<RODC_IP>`
Ldap Bind Method	`NEGOTIATE_LDAP_AUTH`
Ldap Username	`administrator@<your_domain>`
Ldap Basedn	`dc=<domain_part1>,dc=<domain_part2>`
Ldap Domain	`<your_domain>`

:::warning Ensure the Ldap Bind Method is set to NEGOTIATE_LDAP_AUTH. This is the trigger that initiates Kerberos ticket exchange. :::

Troubleshooting

Keytab Generation Fails

Symptom: Logs show kerberos: main: Generate Keytab: failed.
Cause: The RODC password replication policy hasn’t synced the computer account yet.
Fix: Manually initiate a sync on the RODC or wait 15 minutes.

407 Proxy Authentication Required

Cause: Time drift between AD and SafeSquid.
Fix: Verify time sync using the date command on both servers. They must be within 5 minutes of each other.

Source register

Topic	Status	Source
`NEGOTIATE_LDAP_AUTH` bind method	Confirmed	This page (required for Kerberos path)
RODC replication / keytab errors	Confirmed	Troubleshooting above
Time skew tolerance	Draft	5 minutes aligns with common Kerberos practice; CTO confirm against supported AD policy

Next steps

SSO Authentication for standard RWDC paths.
NTP for clock sync.
Authentication hub.
