OpenLDAP SSO Authentication

Configure Access Restrictions to utilize OpenLDAP identities. This enables identity-based policies where users are recognized by their directory username and group membership.

​

Scope note

This page documents the rule-wiring flow that applies OpenLDAP-backed identity in SafeSquid policy. Do not casually equate this page with the Kerberos-based transparent SSO model documented for Active Directory. :::note Prerequisites

• OpenLDAP Simple Authentication configured and successful.
• LDAP users and groups must be visible in the LDAP Entities tab. :::

​

Enable Authentication in Access Rules

1. Access Restrictions: Go to Application Setup → Access Restrictions → Allow List.
2. Edit Rule: Edit the rule matching your client segment or create a new one.

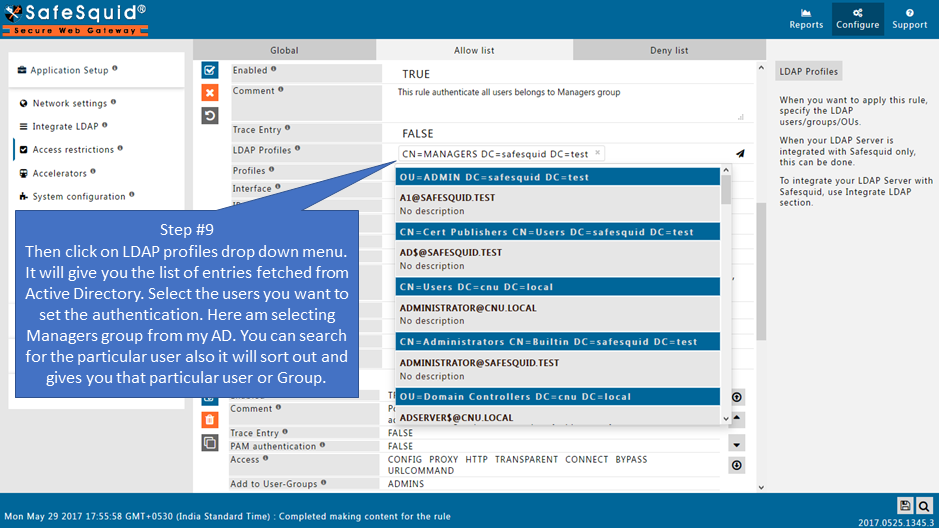

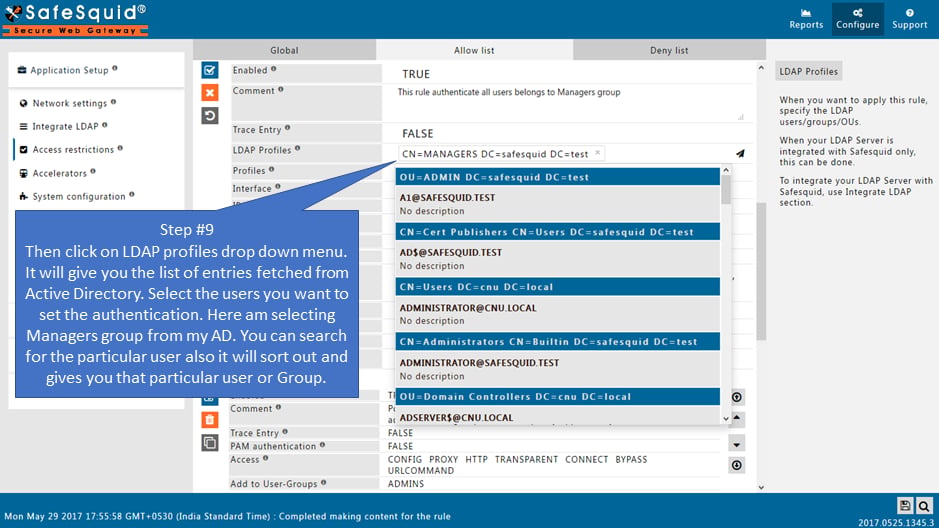

3. Apply LDAP Profiles:
   • LDAP Profiles: Select specific LDAP groups (e.g., IT_Admins) from the dropdown.
   • Leave blank to apply this rule to all directory users.
4. Enable PAM: Ensure PAM Authentication is set to TRUE.
5. Save Policy: Click the checkmark to save.

​

Operational notes

• Treat this as an identity-application path unless your target environment has separately proven a transparent user experience.
• Keep the terminology precise when describing the deployment to operators or customers.

:::tip Note on Default Rules SafeSquid includes default entries under the Allow List. You can edit these to quickly map specific LDAP groups to default user-groups like admins or users. :::

​

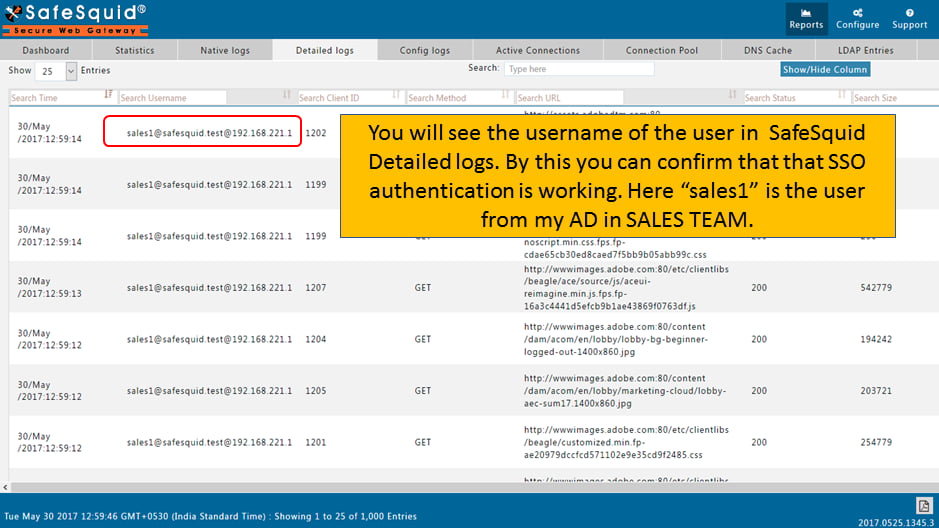

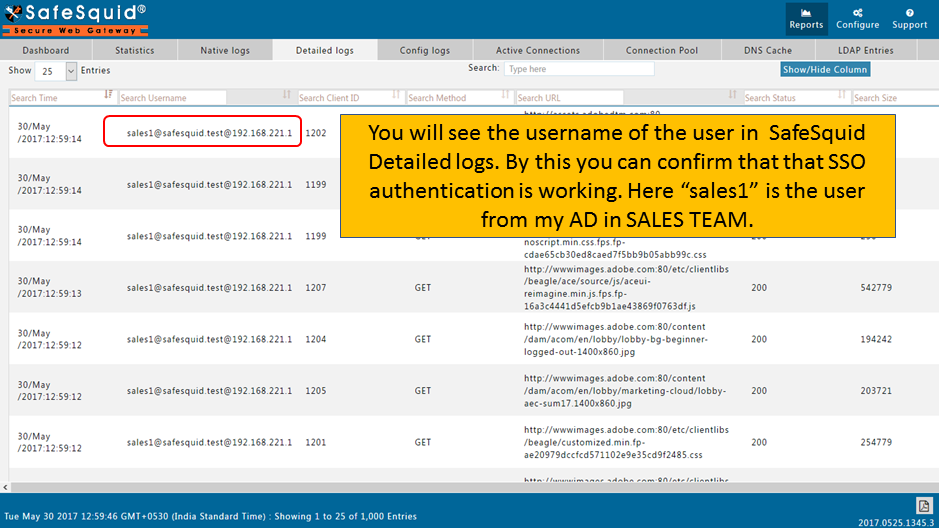

Verification

​

Troubleshooting

​

Source register

​

Next steps

• Access Restriction to define policies for your different LDAP groups.
• SSL Inspection to attribute encrypted traffic to specific users.
• Bypass Authentication for automated services.
